Mining Current Population Survey (CPS) Data

Due: Friday, November 18 at 4pm

The goal of this assignment is to give you experience using the pandas data analysis library. In general, it will also give you experience using a well-documented third-party library, and navigating their documentation in search of specific features that can help you complete your implementation.

Current Population Survey (CPS)

The Current Population Survey (CPS) is the U.S. Government’s monthly survey of unemployment and labor force participation. The survey data, compiled by the National Bureau of Economic Research (NBER), are freely available to the public and come in several forms. The Merged Outgoing Rotation Groups (MORG) datasets are the easiest to use, because NBER has already done high-quality “pre-processing” work on the raw survey data to make sure that everything is logical and consistent. You can refer to the CPS website for more details.

In this programming assignment, you will use pandas to examine and make interesting observations from the MORG datasets in years 2007, 2010, and 2014. More data are available on the CPS website. Feel free to explore CPS on your own after the assignment. You should have all the necessary programming skills to do so!

Getting started

See these start-up instructions if you intend to work alone.

See these start-up instructions if you intend to work with the same partner as in a previous assignment.

See these start-up instructions if you intend to work in a NEW pair.

The pa6 directory includes a file named cps.py, which you will modify, a file named pa6_helpers.py that contains a few useful functions, and a file named test_cps.py with tests.

Please put all of your code for this assignment in cps.py. Do not add extra files.

The data/ directory contains a file called get_files.sh that will download the data files necessary for this assignment, along with some files needed by the tests. To download all the files, go into the data directory and run this command:

./get_files.sh

Please note that you must be connected to the network to use this script.

Do not add the data files to your repository! If you wish to use both
CSIL & the Linux servers and your VM, you will need to run the get_files.sh script twice once for CSIL & the Linux servers and once for your VM.

Data

Ten data files are used for this programming assignment:

  • morg_d07.csv, morg_d10.csv, and morg_d14.csv: MORG datasets for 2007, 2010, and 2014.
  • morg_d07_mini.csv, morg_d10_mini.csv, and morg_d14_mini.csv: Abridged versions of the MORG datasets
  • gender_code.csv, race_code.csv, ethnic_code.csv, and employment_status_code.csv: These files contain information about several codes that appear in the MORG datasets.

All of these files are in comma-separated value (CSV) format. Each file can be understood to represent a table with multiple rows and columns (in fact, the CSV format is supported by most spreadsheet programs, and you can try opening these files in Excel, Libreoffice Calc, etc.). The first line of the file is the header of the file. It contains the names of the columns, separated by commas. After the header, each line in the file represents a row in the table, with each value in the row (corresponding to the columns specified in the header) separated by a comma. A common way to refer to a value in a row is as a field. So, if a CSV file has an age column, in an individual row we would refer to the age field (instead of column, which tends to refer to an entire column of values).

MORG Files

The files morg_d07.csv, morg_d10.csv, and morg_d14.csv contain data extracted from the 2007, 2010, and 2014 MORG datasets, respectively. In all of these files, each row corresponds to the survey data obtained from a unique individual. We consider the following variables for each individual in this assignment (although there are a lot more variables available in the MORG datasets):

  • h_id: a string that serves as a unique identifier, which we created by concatenating several variables in the original MORG datasets.
  • age: an integer value specifying the age of the individual.
  • gender_code: an integer value that encodes the gender (or sex) of the individual.
  • race_code: an integer value ranging from 1 to 26 that represents different races.
  • ethnicity_code: which, if present, is an integer value ranging from 1 to 8, representing a Hispanic ethnicity. If the value is missing, the individual should be considered “Non-Hispanic” (code: 0).
  • employment_status_code: an integer value between 1 and 7 that specifies employment status.
  • hours_worked_per_week: an integer that specifies the usual weekly work hours of an individual.
  • earnings_per_week: a float that indicates the weekly earnings of an individual.

The CSV file has a column for each of these variables. Here are the first few lines from morg_d14.csv, including the header:

h_id,age,gender_code,race_code,ethnicity_code,employment_status_code,hours_worked_per_week,earnings_per_week
1_1_1,32,2,2,,1,40,1250
1_2_2,80,2,1,,7,,
1_3_3,20,2,2,,7,,
1_4_4,28,1,1,,1,40,1100
1_5_5,32,1,1,,1,52,1289.23
1_6_6,69,2,1,,5,,
1_7_7,80,2,1,,5,,
1_8_8,31,1,1,,1,45,866.25
1_9_9,68,2,1,,1,10,105

The files morg_d07_mini.csv, morg_d10_mini.csv, and morg_d14_mini.csv contain “mini” versions of the full MORG datasets. They have the same columns as the MORG datasets, but only contain 20 sample rows from the original files. These “mini” files are small enough so that you can work out answers to each task in the assignments by hand. We have supplied a few basic tests, which use these files, for each task. Once your code passes our tests, you should come up with your own tests for the full data sets and for any special cases that are not covered by our tests.

Code files

Many of the values stored in the MORG files are coded; that is, an integer value is used in place of a more descriptive string. This type of coding is often used to save space. All of the code files— employment_status_code.csv, ethnic_code.csv, gender_code.csv, race_code.csv —have the same format: a two-column header followed by a series of rows each of which has an integer code and the corresponding string.

For example, the file employment_status_code.csv has two columns:

  1. employment_status_code, same as the employment_status_code column in the MORG datasets.
  2. employment_status_string, a string that describes the employment status.

Here are the first few lines from this file:

employment_status_code,employment_status_string
1,Working
2,With a job but not at work
3,Layoff
4,Looking

Take a look at these files to familiarize yourself with the structures. Remember that, in all of these files, the first line is a header with the names of the columns, and every subsequent line represents a row with fields corresponding to the columns specified in the header.

We have defined a dictionary CODE_TO_FILENAME that maps the name of a coded column in the MORG dataset, such as "gender_code", to the name of the corresponding code file.

Pandas

You could easily write the code for this assignment using the csv library, lists, dictionaries, and loops. In fact, last year, we did a similar assignment using exactly those constructs. The purpose of this assignment, however, is to help you become more comfortable using pandas. As a result, you are required to use pandas data frames to store the data and pandas methods to do the necessary computations.

Some of the tasks we will ask you to do require using features in pandas that have not been covered in class. This is by design: one of the goals of this assignment is for you to be able to read and use external documentation. So, when figuring out these tasks, you are allowed (and, in fact, encouraged) to look at the Pandas documentation. Not just that, any code you find on the Pandas documentation can be incorporated into your code without attribution. However, if you find Pandas examples elsewhere on the Internet, and use that code either directly or as inspiration, you must include a code comment specifying its origin.

When solving the tasks in this assignment, you should assume that any computation on the data can be done by calling a series of Pandas operations. Before trying to implement anything, you should spend some time trying to find the right methods for the task. We also encourage you to experiment with them on IPython before you incorporate them into your code.

Our own implementation used filtering and vector operations, as well as methods like concat, cut, fillna, Categorical.from_codes, is_in, max, mean, median, min, read_csv, rename, sort_index, and value_counts along with a small number of lists and loops. Do not worry if you are not using all of these methods!

Your tasks

Task 1: Building a dataframe from the CSV files

Your first task is to complete the function build_morg_df in cps.py. This function takes the name of a MORG file as an argument and should return a pandas dataframe, if the file exists. If the file does not exist, you should return None. (You can use the library function os.path.exists to determine whether a file exists.)

We will refer to a dataframe produced by this function as a MORG dataframe.

MORG dataframes must have columns for:

  1. h_id: string
  2. age: integer
  3. gender: categorical
  4. race: categorical
  5. ethnicity: categorical
  6. employment_status: categorical
  7. hours_worked_per_week: float
  8. earnings_per_week: float

in that order. We defined constants for the column names: HID, AGE, etc.

pandas provides a read_csv function that you can use to read the file into a dataframe. The read_csv function will convert the values for h_id, age, hours_worked_per_week and earnings_per_week into the correct types automatically. If you look at the data carefully, you will notice that the values corresponding to hours worked per week and earnings per week are missing in some of the samples. These values will appear as NaN, which stands for “not a number” in the dataframe.

The read_csv function will not handle the conversion from coded values to categorical values and so, you must write code to convert the coded values for gender, race, ethnicity, and employment status to categorical values and to rename the columns.

Take into account that categorical data is a type of column that we covered briefly in class. You should read up on it to make sure you use it correctly. Please note that you must use a categorical column for gender, race, and ethnicity. You cannot just use merge to merge in the string values of the codes.

We have provided a few basic tests for your build_morg_df function. You can run them using the Linux command:

py.test -x -k build test_cps.py

Recall that the -x flag indicates that py.test should stop as soon as one test fails. The -k flag allows you to reduce the set of tests that is run. For example, using -k build will only run the tests that include build in their names.

Task 2: Weekly earnings statistics

For this task, we will consider full-time workers only. A person is considered to be a full-time worker if and only if the employment status is Working and he or she works 35 or more hours each week.

Your task is to implement the function calculate_weekly_earnings_stats_for_fulltime_workers, which calculates weekly earnings statistics (mean, median, min, max) according to some query criteria specified in the function arguments. In this task, gender, race, and ethnicity are used as query criteria. There are four arguments to this function:

  1. morg_df: a MORG dataframe

  2. gender: which takes on three valid string values, "Male", "Female", and "All"

  3. race, which is a string and there are seven valid values:
    1. "WhiteOnly"
    2. "BlackOnly"
    3. "AmericanIndian/AlaskanNativeOnly"
    4. "AsianOnly"
    5. “Hawaiian/PacificIslanderOnly"
    6. "Other" (races not specified above)
    7. "All" (all races)

  4. ethnicity, which takes on three valid string values, "Hispanic", "Non-Hispanic", and "All" (both Hispanic and Non-Hispanic individuals).

Below are some examples uses of this function:

  • Calculate weekly earnings statistics for all female full-time workers in 2014:

    calculate_weekly_earnings_stats_for_fulltime_workers(morg_df_2014, "Female", "All", "All")

  • Calculate weekly earnings statistics for White and Non-Hispanic full-time workers, both male and female, in 2007:

    calculate_weekly_earnings_stats_for_fulltime_workers(morg_df_2007, "All", "WhiteOnly", "Non-Hispanic")

  • Calculate weekly earning statistics for all Hispanic full-time male workers in 2014:

    calculate_weekly_earnings_stats_for_fulltime_workers(morg_df_2014, "Male", "All", "Hispanic")

The return value of this function is a tuple that contains exactly four floats, reporting the mean, median, min, and max earning values (in that order) of the workers who fit the criteria.

If any argument is not valid, the function should return a tuple with 4 zeroes (i.e., (0,0,0,0)). Moreover, if the given morg_df does not contain any samples that meet the query criteria, the function should also return (0,0,0,0).

You can run our basic tests on your calculate_weekly_earnings_stats_for_fulltime_workers function using the Linux command:

py.test -x -k weekly test_cps.py

You will want to write some tests of your own to supplement ours.

You can use this function to compare the weekly earnings among 2007, 2010, and 2014 for different query criteria using the full MORG datasets, for example:

  • “BlackOnly” by gender
  • “WhiteOnly” by gender
  • “Hispanic” by gender

Try these query criteria yourself. What do the statistics reveal? (you don’t need to include your answer to this in your assignment; we’re encouraging you to play with the data and see what it reveals)

Task 3: Generating histograms

Similar to task 2, we consider full-time workers only in this task (refer to task 2 for the definition of full-time workers).

For this task, you will implement the create_histogram function, which takes in the following arguments:

  1. morg_df: a MORG dataframe
  2. var_of_interest: a string that describes what variable the histogram is created for. Any variable whose values are integers or floats can be used as var_of_interest (e.g., AGE, EARNWKE, etc.).
  3. num_buckets: an integer that specifies the number of buckets for the histogram.
  4. min_val: an integer or a float that specifies the minimal value (lower bound) for the histogram.
  5. max_val: an integer or a float that specifies is the maximal value (upper bound) for the histogram.

This function returns a list with num_buckets elements. The \(i^{\text{th}}\) element in the list holds the total number of samples whose var_of_interest values lie within the range

\[\left[i \cdot \frac{\texttt{max_val} - \texttt{min_val}}{\texttt{num_buckets}} + \texttt{min_val},\; (i+1) \cdot \frac{\texttt{max_val} - \texttt{min_val}}{\texttt{num_buckets}} + \texttt{min_val}\right)\]

For example, if num_buckets is 6, min_val is 10.1, and max_val is 95.0, the histogram will have 6 buckets covering the following ranges:

[10.1, 24.25)

[24.25, 38.4)

[38.4, 52.55)

[52.55, 66.7)

[66.7, 80.85)

[80.85, 95.0)

You will find the function linspace from the numpy library very useful for calculating the bucket boundaries.

As a more concrete example, with the following function call:

create_histogram(morg_df_14_mini, AGE, 10, 20, 50)

where morg_df_2014_mini is built using morg_d14_mini.csv will yield the value:

[2, 0, 1, 0, 1, 0, 1, 1, 1, 1]

In this example, the histogram has 10 buckets. The first element is two, because there are two individuals whose employment status is “Working” and whose age is between 20 (inclusive) and 23 (exclusive) in the 2014 mini MORG dataset (one with age 21, the other with age 22). The second element is zero because there are no individuals whose age is between 23 (inclusive) and 26 (exclusive).

Similarly, we can use the same function to create histograms for hours worked per week and earnings per week.

This is more interesting if we can visualize the histograms. We provide a function plot_histogram in pa6_helpers.py to do this. Plot two histograms using the following code with the full MORG dataset from 2014:

hours_histogram_2014 = create_histogram(morg_df_2014, HRWKE, 20, 35, 70)
pa6_helpers.plot_histogram(hours_histogram_2014, 35, 70, "task2hours.png")

earnings_histogram_2014 = create_histogram(morg_df_2014, EARNWKE, 50, 0, 3000)
pa6_helpers.plot_histogram(earnings_histogram_2014, 0, 3000, "task2earnings.png")

Take a look at the output PNG files (task2earnings.png and task2hours.png) using the Linux command eog. What do these histograms tell you?

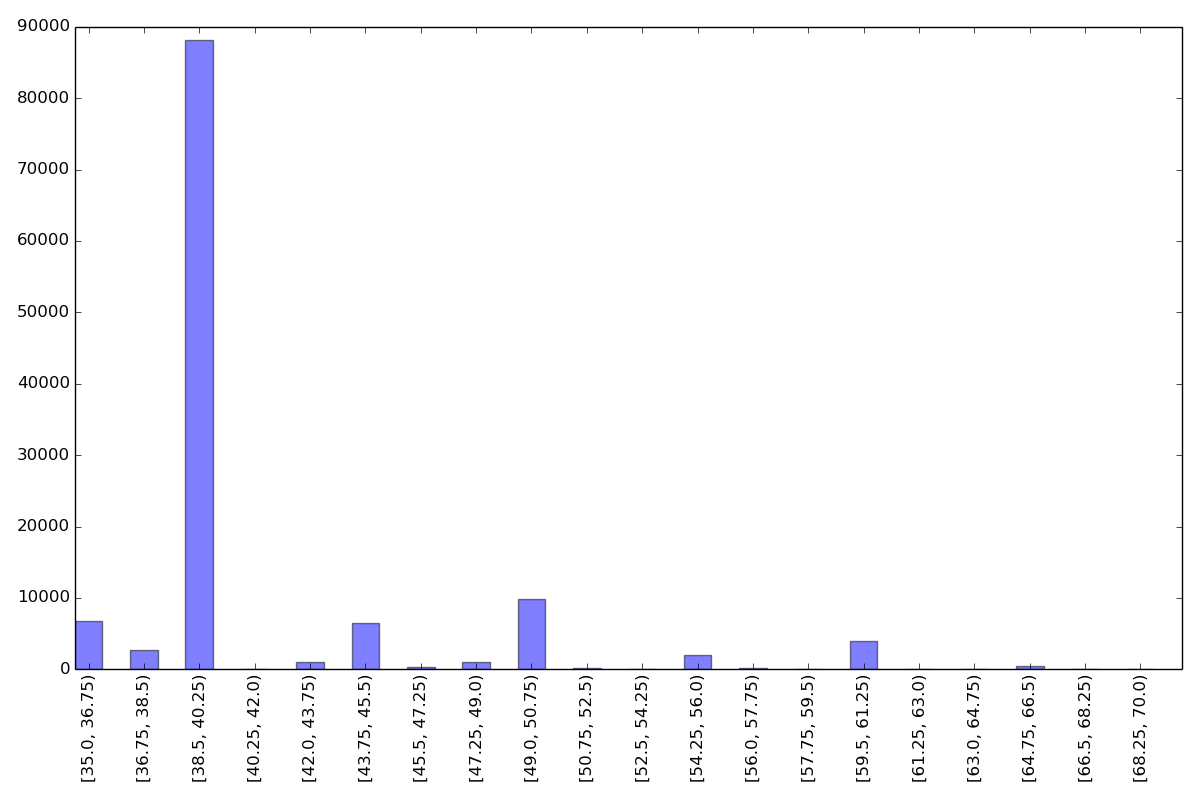

We included the expected histogram plots below for your reference. These histograms make substantive sense:

  1. The earnings histogram does not follow the normal distribution. Instead, it is “right skewed”, meaning that there are more people with low earnings than those with high earnings.
  2. There is an abrupt change at the end of the earnings histogram. This is because, the values of weekly earnings are “top coded” due to confidentiality reasons. In this specific case, what happened is that anyone who earned more than 2884.61 dollars was reported as earning 2884.61 dollars exactly. If the accurate amounts were recorded, we expect that the histogram will have a much longer and smoother tail. Although less obvious, the data might have been “bottom coded” as well, i.e., weekly earnings below a certain value were reported as 0 (or 1).
  3. In the hours histogram, notice that there are a lot of people who worked between 38.5 to 40.25 hours. This may be an artifact: most people do not keep track of exactly how many hours they work every week, and they tend to report 40 as the “standard” answer.
../../_images/task2hours.png ../../_images/task2earnings.png

You can generate similar histograms for years 2007 and 2010, and compare the histograms among the three years. Do not submit the PNG files.

You can run our basic tests on your function by running the Linux command:

py.test -x -k histogram test_cps.py

You will want to write some tests of your own to supplement ours.

Task 4: Unemployment rates

A person is considered to be unemployed if his or her employment status is "Layoff" or "Looking". In this task, you will implement a function for calculating unemployment rates grouped based on a variable of interest for workers that fall in a specified age range. The calculate_unemployment_rates function takes in three arguments:

  1. filename_list: a list of filenames, where each file contains the CPS MORG data for a specific year. You can assume that the CPS MORG data files are all named as morg_d<year>.csv or morg_d<year>_mini.csv, where <year> is replaced with a 2-digit integer as in morg_d07.csv, morg_d10_mini.csv, and morg_d14.csv, etc.
  2. age_range: a two-integer tuple that specifies (age lower bound, age upper bound), both inclusive.
  3. var_of_interest: a string that describes which variable should be used to further breakdown the unemployment rates. The valid values for var_of_interest are GENDER, RACE, and ETHNIC.

The function calculate_unemployment_rates should return a dataframe where the columns correspond to years and the rows correspond to possible values for the variable of interest. For example, the following call:

calculate_unemployment_rates(["data/morg_d14.csv", "data/morg_d10.csv", "data/morg_d07.csv"],
                             (50, 70),
                             GENDER)

yields the following dataframe:

              07        10        14
Female  0.035537  0.073800  0.048915
Male    0.042502  0.102031  0.056111

While it is nice to be able to take a quick look at the data using print, the resulting output is not very pretty. Fortunately, there is a Python library named tabulate that takes data in several forms, including dataframes, and generates nice looking tables. This library is easy to use. Once we have imported tabulate, we can run the following Python code:

df = calculate_unemployment_rates(["data/morg_d14.csv", "data/morg_d10.csv", "data/morg_d07.csv"],
                                  (50, 70),
                                  GENDER)
print(tabulate.tabulate(df, df.columns.values.tolist(), "fancy_grid", floatfmt=".2f"))

to generate this table:

╒════════╤══════╤══════╤══════╕
│        │   07 │   10 │   14 │
╞════════╪══════╪══════╪══════╡
│ Female │ 0.04 │ 0.07 │ 0.05 │
├────────┼──────┼──────┼──────┤
│ Male   │ 0.04 │ 0.10 │ 0.06 │
╘════════╧══════╧══════╧══════╛

Take into account that the unemployment rate is computed relative to the number of individuals in each category. So, for example, the above table tells us that, in 2010, 7% of women aged 50-70 and 10% of men aged 50-70 were unemployed. i.e., it does not tell us that 7% of all the individuals aged 50-70 were women and unemployed.

If a MORG dataset does not contain any sample that fits in the age range for a particular category of var_of_interest, the unemployment rate should be reported as 0.0 for that category.

For example, in morg_d14_mini.csv, there is no worker in the sample whose race is W-B-AI, so when we make the following function call:

calculate_unemployment_rates(['data/morg_d14_mini.csv'], (50, 70), RACE)

the unemployment rate for W-B-AI in the resulting dataframe should be 0.0. In fact, for this file, the rate should be 0.0 for all categories except WhiteOnly.

You will need to use the relevant code file to handle this part of this task. We have defined a dictionary named VAR_TO_FILENAME that maps a legal var_of_interest value to the corresponding code filename.

If the list of files is empty or the age range does not make sense (for example, (70, 50)), your function should return None.

You can run our basic tests for this function using the Linux command:

py.test -x -k unemployment test_cps.py

Once you are sure that the implementation is correct, compare the unemployment rates for both older workers (50 to 70 years old) by gender among 2007, 2010, and 2014 using the full MORG datasets. What does this summary of the data reveal? How about unemployment rates for younger workers between 22 and 29 years old by gender? What if we breakdown the unemployment rates by race or ethnicity?

Submission

See these submission instructions if you are working alone.

See these submission instructions if you are working in the same pair as in a previous assignment.

See these submission instructions if you are working in a NEW pair.

Acknowledgments: Yanjing Li wrote the original version of this assignment.
