Classes and Objects¶

Introduction¶

The goal of this lab is to understand how objects work, including how an application is designed following an object-oriented paradigm. In Lab 3, you wrote some functions of your own and got some practice calling them in order to create larger programs that were made possible through the composition of those functions. In this lab, you will take that idea a step further by using objects to organize and compose data. First, we will add some functionality to the Divvy classes we saw in the lectures, and then we will write new classes from scratch to model a dataset from the chisubmit system you use to submit assignments.

Python is an object-oriented language, which means that everything in Python is really a structure called an object. So, for example, when we create a dictionary:

d = {"foo": 42, "bar": 37}

What we’re really doing is creating an instance of the dict class which we store in a variable called d. The “type of an object” is called its class. So, when we refer to “the dict class” we refer to the specification of a datatype that is used to contain character strings. In fact, we can also create a dictionary like this:

d = dict([("foo", 42), ("bar", 37)])

Or an empty dictionary like this:

d = dict()

In lecture, we’ve referred to some data types (like int and float as “primitive data types” that specify a domain of values (like integers, real numbers, boolean values, etc.). In Python, these data types are actually also objects, even if we don’t tend to think of them as such (in fact, some other programming languages, like Java, also handle primitive data types as non-object types). For example, if you create a float variable:

x = 0.33

Variable x is actually an instance of Python’s float class, which has a few handy methods, like as_integer_ratio, which returns the floating point number as a numerator/denominator tuple:

>>> x = 0.25
>>> x.as_integer_ratio()
(1, 4)

Play around with this type a bit. Notice anything interesting with certain floating point numbers?

In this lab, you will be able to get more practice working with classes. It is divided into two parts: first you will modify some existing classes, and then you will design some classes of your own.

To get started, open up a terminal and navigate (cd) to your cmsc12100-aut-19-username directory. Run git pull upstream master to collect the lab materials and git pull to sync with your personal repository.

Working with the Divvy Data¶

As you probably know, Divvy is Chicago’s enormously popular bike sharing system. In 2014, Divvy published (anonymized) data on all the Divvy bicycle trips taken in 2013 (this data was published as part of the 2013 Divvy Data Challenge). The dataset contains two files: one with information about each Divvy station, and one with information about each Divvy trip.

In the first part of the lab, we will be using four classes that model the Divvy dataset:

Location: A class representing a geographic location.
DivvyStation: A class representing an individual Divvy station.
DivvyTrip: A class representing an individual Divvy trip.
DivvyData: A class representing the entire dataset, which includes a list of stations and a list of trips.

An important aspect of object orientation is the ability to create relationships between different classes, to model real-world relationships. For example, a Divvy trip has an origin station and a destination station. Instead of trying to pack all the information about the stations in the DivvyTrip class, we instead have a separate DivvyStation class that is used to represent individual stations. The DivvyTrip class then only needs to have two attributes of type DivvyStation: one for the origin station and one for the destination station.

These relations are referred as composition relationships, because they allow us to define a class that is composed of other classes. A useful way to think of these kind of relationships is that, if you can describe the relationship as “has a” (e.g., “A DivvyStation has a Location”), it is probably a composition relationship.

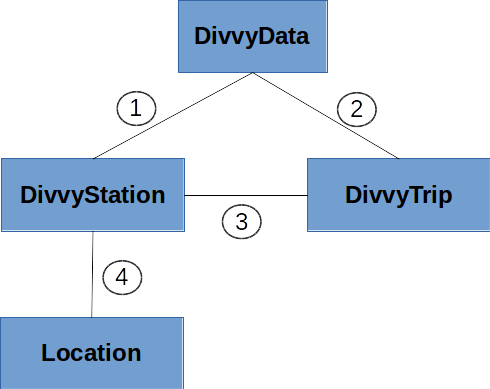

All the composition relations between the Divvy classes are summarized in the following figure:

1,2. The DivvyData class represents the entire Divvy dataset, so it: contains (1) a dictionary that maps station identifiers to DivvyStation objects, and (2) a list of DivvyTrip objects.

As discussed above, a DivvyTrip has two DivvyStation objects associated with it. This relationship is implemented simply by setting two attributes, from_station and to_station in the DivvyStation constructor.
Finally, each Divvy station has a location, which we represent using an instance of the Location class. Again, this is done simply setting an attribute, location to a Location object in the DivvyStation constructor.

The DivvyData class also has a bikeids attribute with a set of all the bike identifiers in the dataset. This is not a composition relationship, but it is something you may find useful in some of this lab’s tasks.

For more details on the Divvy classes, please read the Composition section of the textbook’s chapter on Classes and Objects.

Before you get started¶

Before you get started, you will need to download the Divvy dataset files. To do so, go into the lab5/data directory in your terminal, and run the following:

./get_files.sh

This will download the files; if the download is successful, you should see this at the end of the command’s output:

Extracting Divvy data...
divvy_2013_stations.csv
divvy_2013_trips.csv
divvy_2013_trips_medium.csv
divvy_2013_trips_small.csv
divvy_2013_trips_tiny.csv

We have provided the full dataset (divvy_2013_trips.csv) but also some smaller files that will take less time to load.

Next, you will want to have an IPython session open. Make sure you start IPython from the lab5 directory, and that you load the autoreload extension, and then import the divvy module:

In [1]: %load_ext autoreload

In [2]: %autoreload 2

In [3]: import divvy

Computing the total distance of each bike¶

We are going to start by adding a simple method to the DivvyData class, which is contained in the divvy.py file in your lab5 directory. You’ll see this class already has methods to compute the total distance of all the trips (get_total_distance), and the total duration of all the trips (get_total_duration). Make sure you understand how these methods work before continuing!

You are going to add a new method to the DivvyData class that computes, for every bike in the Divvy dataset, the sum of the duration of all the trips taken by that bike:

def get_bike_times(self):
    """
    Computes, for every bike in the Divvy dataset, the sum of the
    duration of all the trips taken by that bike.

    Returns a dictionary mapping bike identifiers (integer) to
    a duration in seconds (integer)
    """

To implement this method, you will need to access the bikeid attribute of the DivvyTrip objects in the DivvyData class. This attribute contains the identifier of the bike used for that trip.

You can test your implementation from IPython by creating a DivvyData object with our “tiny” dataset, and then testing a few bikes individually. For example:

In [5]: data = divvy.DivvyData("data/divvy_2013_stations.csv",
   ...:                        "data/divvy_2013_trips_tiny.csv")
   ...:

In [6]: dt = data.get_bike_times()

In [7]: dt[27]
Out[7]: 10105

In [8]: dt[44]
Out[8]: 1852

Later on, we’ll see a more thorough way to test your implementation. However, if your implementation works with the examples above, just move on to the next task for now.

Computing the number of times a bike has been moved¶

If you’ve lived in Chicago long enough, you may have spotted the Divvy vans that occasionally come to a Divvy station to place bikes on the station’s dock if the station is running low on bikes. Not just that, they’ll also take bikes away if the station has too many bikes and seems to be underutilized.

So, you will sometimes see trips like this in the dataset:

Trip #1234: Customer A took Bike 44 from station 10 to station 20
Trip #1235: Customer B took Bike 44 from station 20 to station 30
Trip #1236: Customer C took Bike 44 from station 50 to station 70

This means that the bike was moved by a Divvy van from station 30 to station 50!

You will add a method to the DivvyData class that finds any such movements for all the bikes in the dataset:

def get_bike_movements(self):
    """
    Returns a dictionary mapping bike identifiers (integer)
    to a list of tuples, where each tuple represents that bike
    being moved from one station to another.

    Each tuple contains three values: the station the bike was
    moved from (DivvyStation object), the station the bike was
    moved to (DivvyStation object), and the difference in capacity
    between the two stations (more specifically, the capacity
    of the station the bike was moved to minus the capacity
    of the station the bike was moved from). Note that this
    will be an integer that can be either positive or negative.

    Note that the dictionary must also include entries for
    the bikes that have not been moved at all (those entries
    will just map to an empty list)
    """

To implement this method, you will need to access the dpcapacity attribute of the DivvyStation objects. You will also want to use the bikeids attribute of DivvyData. Finally, take into account that the trips attribute in DivvyData has the trips sorted by their start time.

You can test your implementation from IPython using the data object we created earlier:

In [11]: bm = data.get_bike_movements()

In [13]: bm[409]
Out[13]:
[(<DivvyStation 85: Michigan Ave & Oak St>,
  <DivvyStation 350: Ashland Ave & Chicago Ave>,
  0)]

Notice how the DivvyStation objects are shown using the string representation returned by DivvyStation’s __repr__ method.

If you print the entire bm dictionary, you should actually see that none of the bikes have any movements (except bike 409). Remember we loaded a “tiny” subset of the full dataset, so this is not unexpected.

Testing your Divvy methods more thoroughly¶

As part of the divvy.py file, we have included some code that uses these two methods to answer these questions:

What is the average amount of time a bike is used?
What is the most used bike in the Divvy system?
What is the average number of times a bike is moved?
Do vans tend to move bikes from high capacity stations to low capacity stations, from low to high, or neither?

Once you’ve implemented the two methods specified above, just run the divvy.py file from the terminal as follows:

python3 divvy.py data/divvy_2013_stations.csv data/divvy_2013_trips_medium.csv

Notice how we’re using our “medium”-sized dataset for this. If you implemented the methods correctly, the output should end with this:

The average total usage of a bike is 1d 8h 0m 39s
The most used bike is 444, used a total of 3d 17h 41m 10s

The average number of times a bike was moved was 16.17
On average, a bike is moved to a station with 1.05 more docks
(Standard deviation: 10.29)

If your code works with the medium data set, try running it with the full dataset:

python3 divvy.py data/divvy_2013_stations.csv data/divvy_2013_trips.csv

Please note that this will take a few seconds to run. The output should end with the following:

The average total usage of a bike is 3d 18h 36m 38s
The most used bike is 199, used a total of 9d 11h 30m 17s

The average number of times a bike was moved was 122.30
On average, a bike is moved to a station with 0.12 more docks
(Standard deviation: 9.28)

These results are interesting, but don’t forget to check out the code that produces them! You can find it towards the bottom of the divvy.py file.

Designing your own classes¶

In this part of the lab, we will be using a different dataset: an anonymized chisubmit dataset from a different course in the department. This dataset contains:

Assignments: An assignment is a piece of work that must be handed in by some deadline. The class had six assignments, pa1 through pa6.
Students: The students registered in the class (their names and CNetIDs have been anonymized using the Python names package).
Teams: This class allowed students to submit assignments individually or in pairs. In the chisubmit model, teams are the ones that submit assignments so, if a student works individually, then they’re actually a “team of one” and they makes submissions under that team.
Submissions: Each team can have zero or more submissions, with at most one submission per assignment (while chisubmit does allow multiple submissions per assignment, the dataset we’re providing only includes the final submission of each assignment, i.e., the one that was sent to the graders).

This dataset is stored in three JSON files, assignments.json, students.json, and teams.json in the lab5/data directory (the teams.json file also contains information about the submissions). While we provide the code to load the data from these files, you should nonetheless take a look at contents of the files.

You will do your work in the course.py file, which already includes an implementation of an Assignment class and a Student class. We also provide the code that creates all the Assignment and Student objects based on the dataset.

Our code also loads the data for teams and submissions into a list of dictionaries calles teams_json, where a team dictionary looks like this:

{
  "students": [
    "jdunlap",
    "ghood"
  ],
  "team_id": "jdunlap-ghood",
  "submissions": [
    {
      "assignment_id": "pa2",
      "submitted_at": "2017-01-18 00:27:35.886530+00:00",
      "extensions_used": 0
    },
    {
      "assignment_id": "pa3",
      "submitted_at": "2017-01-24 02:00:11.428773+00:00",
      "extensions_used": 0
    }
  ]
}

Notice how a team dictionary also includes the list of submissions for that team.

Your task is to design and implement a Team class and a Submission class, and create Team and Submission objects based on the data loaded into teams_json. Make sure you add your code in the parts of course.py labelled YOUR CODE HERE.

When implementing these classes, take the following into account:

There are several composition relationships in these classes:
- A Team object has one or two Student objects.
- A Team object has zero or more Submission objects.
- A Submission object has an Assignment object.
Note that the above relationships are one-way. For example, we would model the relationship between a Submission and an Assignment by adding an attribute in Submission that contains the Assignment object for a given submission. However, that doesn’t mean that Assignment must also have an attribute with a list of all the submissions for a given assignment (this would be a valid way of modeling the relationship in a bidirectional way, but we’re just not requiring it here)
Your Team class must include at least the following methods:
- includes_dropped(): returns True if at least one of the students in the team has dropped the class, False otherwise.
- extensions_used(): returns the number of extensions used by this team across all its submissions.
And the following attribute:
- submissions: A list of Submission objects.
Your Submission class must include at least the following method:
- deadline_delta(): The difference in seconds between the submission time and the assignment deadline (the difference will be positive if the submission was made after the deadline, and negative if it was made before the deadline). You can use the subtraction operator on the datetime type (e.g., d1 -d2). This will return a timedelta object. You will need to read the timedelta documentation to obtain the total number of seconds.

A good rule of thumb¶

Object oriented design can be tricky, and one aspect that can be challenging is deciding what should go in a given class (be it the Team and Submission classes in this lab or the Voter, VoterGenerator, and Precinct classes from the assignment). When designing a class, you should try to remember this rule of thumb:

If a class X has an attribute Y, the phrase “X has a Y” must make sense

Try it out with some of the classes we’ve seen in this lab:

A Location has a longitude and latitude
A DivvyStation has a name
A DivvyTrip has a bikeid (of the bike used in that trip)
A DivvyTrip has a tripduration

Composition relationships are simply “has a” relationships where the “Y” (in “X has a Y”) is, itself, an object (or objects). For example:

A DivvyStation has a location (which is represented as a Location object)
A DivvyTrip has two stations (origin and destination, each a DivvyStation object)
A Team has submissions (i.e., a list of Submission objects)

So, as you design your classes for PA #4, make sure you use you use this rule of thumb:

“A Precinct has an arrival time”? Doesn’t make sense: precincts don’t have arrival times, voters do.
“A Precinct has arrival times”? That phrase makes a bit more sense, but it’s not the Precinct which directly has arrival times. It’s the voters voting at that precinct who have arrival times.
“A VoterGenerator has a voting duration”? The VoterGenerator is responsible for randomly generating the voting duration of a voter, but the VoterGenerator itself doesn’t have a voting duration.
etc.

If you add an attribute and the phrase “X has a Y” doesn’t make sense, you’re probably heading down the wrong path. If so, and you can’t figure out the correct attributes, please ask on Piazza or come to office hours.

Testing¶

Because we do not know the exact way in which you will design your classes, we cannot provide tests for your classes. We suggest you test your code in IPython as you work through this part of the lab. You should start your IPython session as follows:

In [1]: %load_ext autoreload

In [2]: %autoreload 2

In [3]: import course

In [4]: a, s, t = course.load_data("data/assignments.json", "data/students.json", "data/teams.json")

In [5]: assignments = course.create_assignment_objects(a)

In [6]: students = course.create_student_objects(s)

t will contain the list of team dictionaries, which you can use to test the creation of your Team and Submission objects. Note that you will be able to access the Student and Assignment objects through the assignments and students variables.

Once you have a complete implementation, you can run course.py from the command-line:

python3 course.py

If your implementation is correct, it should print out the following:

The number of teams with dropped students is 6

On average, non-late submissions are made 6h 13m 59s before the deadline

When Finished¶

When finished with the lab please check in your work. Assuming you are inside the lab directory, run the following commands from the Linux command-line:

git add divvy.py
git add course.py
git commit -m "Finished with lab5"
git push

No, we’re not grading this. We just want to look for common errors.
