Visualizing Employee Diversity Using Treemaps

Due: Wednesday, December 4th at 4pm.

Please note the non-standard due date.

The purpose of this assignment is to give you practice working with recursive data structures and writing recursive functions.

You must work alone on this assignment.

Introduction

Some of the most lucrative entry-level jobs in the U.S. are at technology companies in Silicon Valley. In recent years, greater attention has been paid to whether all people who possess the skills, regardless of gender or race, have an equal opportunity in being hired for these tech jobs. The New York Times calls this state of affairs Silicon Valley’s diversity problem, while The Guardian referred to Silicon Valley as Segregated Valley in one article. The lack of diversity in Silicon Valley tech companies has proven stubbornly persistent and may have a number of causes.

As this question has received greater attention, researchers and policymakers have begun to collect data to examine the current state of affairs more quantitatively. For example, the U.S. Equal Employment Opportunity Commission (EEOC) collected employment diversity data from a number of companies as EEO-1 Reports. This data showed that workforce diversity at Silicon Valley tech firms was quite different than at non-tech firms in Silicon Valley.

The data science site Kaggle published data from 22 Silicon Valley companies’ EEO-1 reports, enabling anyone to investigate the diversity of these companies’ workforces. This particular data set was collected by Reveal from The Center for Investigative Reporting and released under an ODbl license.

While this data is moderately interesting as a spreadsheet, it takes some careful study to get a sense of the diversity at a particular company. Rather than using a spreadsheet, the summary data can be represented hierarchically as a tree, where each sub-division is a node in the tree. For example, below we show the number of employees who identify as male and female at each of the 22 companies in the dataset. This tree represents just a part of the data (summing over all races and all job categories). Each node contains the count of employees summed across its children nodes. For example, the root node contains 354964 employees, which is the sum of the number of employees at the 22 different companies. 23andMe has 297 employees, 148 of whom identify as male and 149 of whom identify as female.

354964
│
├──23andMe: 297
│  │
│  ├──male: 148
│  │
│  └──female: 149
│
├──Adobe: 7162
│  │
│  ├──male: 4859
│  │
│  └──female: 2303
│
├──Airbnb: 1917
│  │
│  ├──male: 1095
│  │
│  └──female: 822
│
├──Apple: 77192
│  │
│  ├──male: 53456
│  │
│  └──female: 23736
│
├──Cisco: 37526
│  │
│  ├──male: 27681
│  │
│  └──female: 9845
│
├──eBay: 6611
│  │
│  ├──male: 4238
│  │
│  └──female: 2373
│
├──Facebook: 11241
│  │
│  ├──male: 7676
│  │
│  └──female: 3565
│
├──Google: 46760
│  │
│  ├──male: 33120
│  │
│  └──female: 13640
│
├──HP Inc.: 13613
│  │
│  ├──male: 9393
│  │
│  └──female: 4220
│
├──HPE: 51989
│  │
│  ├──male: 34794
│  │
│  └──female: 17195
│
├──Intel: 54135
│  │
│  ├──male: 40084
│  │
│  └──female: 14051
│
├──Intuit: 5911
│  │
│  ├──male: 3373
│  │
│  └──female: 2538
│
├──LinkedIn: 6655
│  │
│  ├──male: 3978
│  │
│  └──female: 2677
│
├──Lyft: 1433
│  │
│  ├──male: 824
│  │
│  └──female: 609
│
├──MobileIron: 506
│  │
│  ├──male: 350
│  │
│  └──female: 156
│
├──Nvidia: 5348
│  │
│  ├──male: 4429
│  │
│  └──female: 919
│
├──Pinterest: 944
│  │
│  ├──male: 537
│  │
│  └──female: 407
│
├──Salesforce: 14716
│  │
│  ├──male: 10019
│  │
│  └──female: 4697
│
├──Square: 1711
│  │
│  ├──male: 1119
│  │
│  └──female: 592
│
├──Twitter: 2952
│  │
│  ├──male: 1908
│  │
│  └──female: 1044
│
├──Uber: 5885
│  │
│  ├──male: 4149
│  │
│  └──female: 1736
│
└──View: 460
   │
   ├──male: 382
   │
   └──female: 78

Each node is labeled by the particular sub-division (e.g., male or female). Note that we added a root node with no label to tie the categories together into a single tree.

While this tree representation helps us to make comparisons, once we add in the other factors (job title and race), the data will be sliced in such a way that we will lack an intuitive sense of the relative diversity at the different companies. It would be much better to see a visual representation of the data, which is the role information visualization plays in computing and in data science.

How can we visualize this information in an effective way? We can use Treemaps, which are an excellent tool for visualizing hierarchical data. Here, for example, is a treemap of gender diversity across the 22 companies:

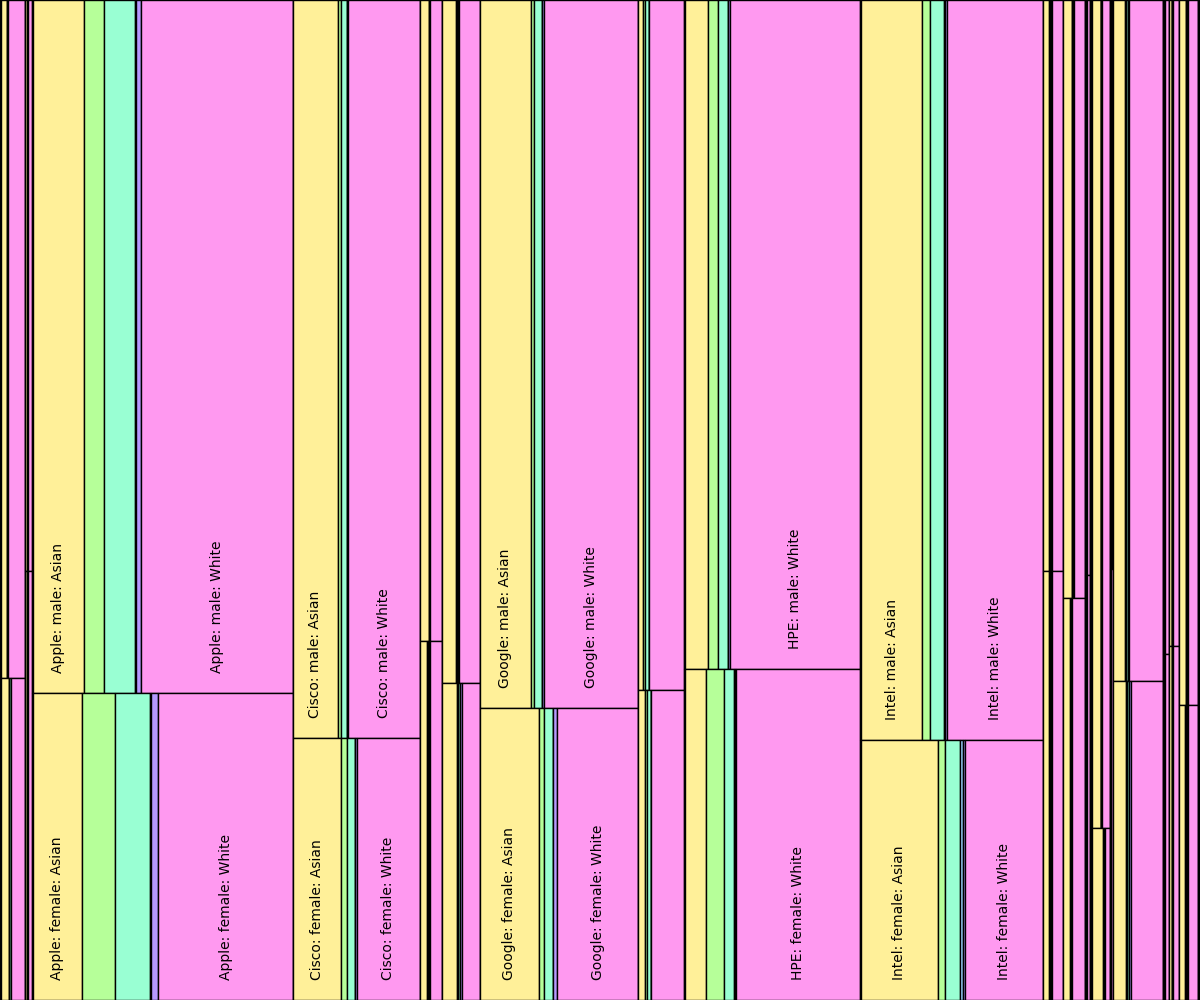

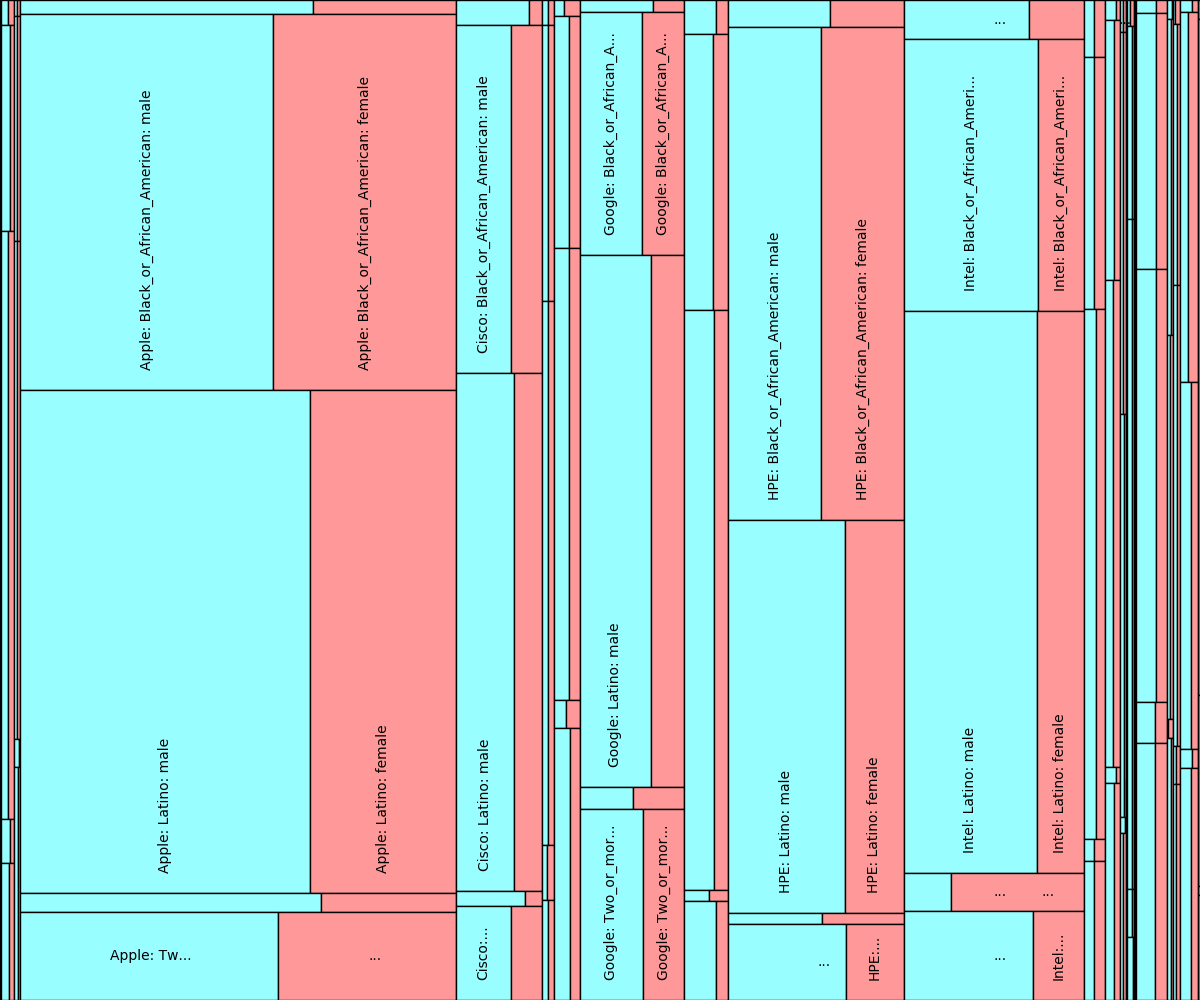

Treemap of gender diversity across companies

Looking at the data in this form, we can immediately see the proportion of males and females at each company, as well as how different Silicon Valley tech companies compare to each other in terms of gender diversity. The treemap also visualizes the relative size of the workforce at each company, showing that comparatively gender-balanced companies tend to have too small a workforce to even give them a legible label in the treemap.

In general, treemaps are a space-constrained method for visualizing hierarchical structures that present a sense of “mass” and proportionality in a way that the typical tree diagram shown above does not. Treemaps allow the viewer to compare leaves and sub-trees even at varying depths in the tree, and to spot patterns and exceptions. Ben Shneiderman designed treemaps during the 1990s as a way to visualize the contents of a file system. This technique has since been used to visualize many different types of data, including stock portfolios, oil production, a gene ontology, stimulus spending, and more. The original idea has been extended in many interesting ways.

In this assignment, you will write code to generate treemaps to visualize this diversity data from Silicon Valley tech companies in a number of ways.

Silicon Valley EEO-1 Data

We have reformatted the data collected by Reveal slightly and included it as a diversity.csv file in the data directory of this programming assignment. Each row of the dataset contains the following:

• company: Company name
• year: Currently 2016 only
• race: Possible values: American_Indian_Alaskan_Native, Asian, Black_or_African_American, Latino, Native_Hawaiian_or_Pacific_Islander, Two_or_more_races, White
• gender: Possible values: male, female (Non-binary gender is not included in EEO-1 reports)
• job_category: Possible values: Administrative support, Craft workers, Executive/Senior officials & Mgrs, First/Mid officials & Mgrs, laborers and helpers, operatives, Professionals, Sales workers, Service workers, Technicians
• count: For the job category, company, race, and gender specified by that row, an integer representing the number of employees (as of 2016) in that job category at that company who identify with that race and gender

Note that this data is in CSV format. As an example, the row "Adobe",2016,"Latino","male","Professionals",75 indicates that in 2016, Adobe had 75 employees in the job category Professionals who identified as Latino and male. Because the data includes 22 companies, the csv file contains a header row plus 3080 data rows (22 companies * 2 gender categories * 7 race categories * 10 job categories). In total, this CSV file contains data about 354,964 employees at those 22 companies.

We have also included a diversity-small.csv file that only includes data from Apple, Google, and Facebook, for races Asian, Latino, and White, and for job categories Executive/Senior officials & Mgrs and Professionals. You may find this file useful when debugging your code.

Getting started

We have seeded your repository with a directory for this assignment. To pick it up, change to your cmsc12100-aut-19-username directory (where the string username should be replaced with your username) and then run the command: git pull upstream master. You should also run git pull to make sure your local copy of your repository is in sync with the server.

The pa7/ directory contains several Python files, but you will only be modifying one of them: treemap.py. The rest of the files are described throughout the assignment.

As usual, you will be able to test your code from IPython and by using py.test. When using IPython, make sure to enable autoreload before importing the Python files we will use in this assignment:

In [1]: %load_ext autoreload

In [2]: %autoreload 2

In [3]: import treemap, drawing

In [4]: import tree as tr

Like previous assignments, we also include a series of automated tests. These tests require an additional set of files, which you can download by running the following from inside the data/ directory:

./get_files.sh

Test running times

Running the complete set of tests can take a while (it takes about 30 seconds on our machines, and around 60 seconds on the Continuous Integration server). When working on an individual task, make sure to use the -k parameter to py.test to run only the tests for that task.

Furthermore, the tests use two datasets: a small one and a full one. The tests with the small dataset take less than 2 seconds to run, so we encourage you to always start by running the tests with that dataset before you run the tests with the full dataset.

Task 0

This task will have zero impact on your grade. If you do it, we will not grade it. If you don’t do it, you won’t lose points for it. However, we strongly encourage you to do it, as it will ensure that you understand how to work with the data before moving on to the following tasks.

Your warm-up task is to complete the following function in treemap.py:

def load_diversity_data(filename, debug=False):

In this function, we already read in the data from the CSV file and store it in a pandas DataFrame. Modify this function so that, if parameter debug is True, the function also prints out the following basic summary statistics to give a high-level view of the data:

• A list of all of the distinct companies included in the dataset and the length of this list. Do not include any counts of employees for the companies.
• The total number employees iare included in the dataset across all companies
• Summarize how many employees of each gender are included in the dataset
• Summarize how many employees of each race are included in the dataset
• Summarize how many employees of each job_category are included in the dataset

Your code should generalize. For example, it should calculate the number of companies from the dataframe, rather than using a hard-coded value of 22. You should compute these summary statistics primarily using the pandas Python package. An example output follows. Your output does not have to match the one below

Diversity data comes from the following 22 companies:
23andMe, Adobe, Airbnb, Apple, Cisco, eBay, Facebook,
Google, HP Inc., HPE, Intel, Intuit, LinkedIn, Lyft,
MobileIron, Nvidia, Pinterest, Salesforce, Square, Twitter,
Uber, View

The data includes 354964 employees

#############
gender
#############
  female :  107352
  male :  247612

#############
race
#############
  American_Indian_Alaskan_Native :  1165
  Asian :  96171
  Black_or_African_American :  17832
  Latino :  25767
  Native_Hawaiian_or_Pacific_Islander :  1146
  Two_or_more_races :  5871
  White :  207012

#############
job_category
#############
  Administrative support :  18792
  Craft workers :  543
  Executive/Senior officials & Mgrs :  3536
  First/Mid officials & Mgrs :  52036
  Professionals :  204025
  Sales workers :  42615
  Service workers :  904
  Technicians :  32057
  laborers and helpers :  190
  operatives :  266

Testing Task 0

Since this task simply involves printing some data, it has no associated automated tests. However, you can informally verify the correct output is being produced by running the following in IPython:

In [1]: data = treemap.load_diversity_data("data/diversity.csv", debug=True)

This should produce output similar to the one shown above.

You should also make sure your function works correctly for the smaller dataset:

In [2]: data = treemap.load_diversity_data("data/diversity-small.csv", debug=True)

This should produce output similar to this:

Diversity data comes from the following 3 companies: Apple, Facebook, Google

The data includes 61558 employees

#############
gender
#############
  female :  15236
  male :  46322

#############
race
#############
  Asian :  25429
  Latino :  3024
  White :  33105

#############
job_category
#############
  Executive/Senior officials & Mgrs :  602
  Professionals :  60956

To reiterate, it is not necessary to match this formatting precisely. However, the values should be the ones shown above.

Representing trees

While storing this data in a dataframe allows us to start examining the data, drawing a treemap will be much easier if we represent the data as a tree. We will construct the tree such that each level of the tree represents a particular employee characteristic. For instance, one level of the tree might represent job categories, while another level of the tree might represent gender.

We provide a class, Tree in the file tree.py, that you can use to represent tree data. The class is useful for representing the diversity data, but it is not specific to the diversity data.

Take into account that this is not the exact same Tree class we saw in class, although it is largely similar: a Tree object represents a node on a tree, each node has a few attributes, and the node’s children are stored in a list. The public interface for this class includes:

• a constructor for creating a tree node,
• public attributes count (integer), label (string), and verbose_label (string).
• a list of children nodes
• a method, num_children, that returns the number of children the node has
• a method, print, for printing the tree rooted at that node for debugging purposes

We can use this class to represent our employee diversity data by using the count attribute to hold the number of employees and the label attribute to hold the name of the category that node represents. For instance, in the gender level of the tree, a label would be either female or male. Note that, for all levels other than the first non-root level of the tree, multiple nodes on that level can (and should) have the same label.

We will use the attribute verbose_label to store a string representation of the full path to a node, which we will use when displaying the treemap. We elaborate on this requirement in Task 1.

If you are wondering why we are using generic names —label and count— rather than diversity category or number of employees, it is because this approach allows your treemap implementation to generalize to situations beyond employment diversity data.

We provide the following function, data_to_tree, that creates a tree from a pandas DataFrame following a specified hierarchy. Note that it does so by calling a helper function, create_st, which recursively creates sub-trees.

def data_to_tree(data, hierarchy):
    '''
    Converts a pandas DataFrame to a tree (using Tree) following a
    specified hierarchy

    Inputs:
        data: (pandas.DataFrame) the data to be represented as a tree
        hierarchy: (list of strings) a list of column names to be used as
                   the levels of the tree in the order given. Note that all
                   strings in the hierarchy must correspond to column names
                   in data

    Returns: a tree (using the Tree class) representation of data
    '''

A sample call of data_to_tree follows:

In [8]: data = treemap.load_diversity_data("data/diversity.csv")

In [9]: example_tree = tr.data_to_tree(data, ["company", "gender"])

In [10]: example_tree.print()


  │
  ├──23andMe
  │  │
  │  ├──male: 148
  │  │
  │  └──female: 149
  │
  ├──Adobe
  │  │
  │  ├──male: 4859
  │  │
  │  └──female: 2303
  │
  ├──Airbnb
  │  │
  │  ├──male: 1095
  │  │
  │  └──female: 822
  │
  ├──Apple
  │  │
  │  ├──male: 53456
  │  │
  │  └──female: 23736
  │
  ├──Cisco
  │  │
  │  ├──male: 27681
  │  │
  │  └──female: 9845
  │
  ├──eBay
  │  │
  │  ├──male: 4238
  │  │
  │  └──female: 2373
  │
  ├──Facebook
  │  │
  │  ├──male: 7676
  │  │
  │  └──female: 3565
  │
  ├──Google
  │  │
  │  ├──male: 33120
  │  │
  │  └──female: 13640
  │
  ├──HP Inc.
  │  │
  │  ├──male: 9393
  │  │
  │  └──female: 4220
  │
  ├──HPE
  │  │
  │  ├──male: 34794
  │  │
  │  └──female: 17195
  │
  ├──Intel
  │  │
  │  ├──male: 40084
  │  │
  │  └──female: 14051
  │
  ├──Intuit
  │  │
  │  ├──male: 3373
  │  │
  │  └──female: 2538
  │
  ├──LinkedIn
  │  │
  │  ├──male: 3978
  │  │
  │  └──female: 2677
  │
  ├──Lyft
  │  │
  │  ├──male: 824
  │  │
  │  └──female: 609
  │
  ├──MobileIron
  │  │
  │  ├──male: 350
  │  │
  │  └──female: 156
  │
  ├──Nvidia
  │  │
  │  ├──male: 4429
  │  │
  │  └──female: 919
  │
  ├──Pinterest
  │  │
  │  ├──male: 537
  │  │
  │  └──female: 407
  │
  ├──Salesforce
  │  │
  │  ├──male: 10019
  │  │
  │  └──female: 4697
  │
  ├──Square
  │  │
  │  ├──male: 1119
  │  │
  │  └──female: 592
  │
  ├──Twitter
  │  │
  │  ├──male: 1908
  │  │
  │  └──female: 1044
  │
  ├──Uber
  │  │
  │  ├──male: 4149
  │  │
  │  └──female: 1736
  │
  └──View
     │
     ├──male: 382
     │
     └──female: 78

This builds a tree similar to the company-by-company breakdown of employees’ genders shown in the introduction. The tree returned, however, lacks counts for the internal (non-leaf) nodes, which you will add in Task 1.

The absence of these counts is more evident when creating a deeper tree with more categories:

In [12]: data_small = treemap.load_diversity_data("data/diversity-small.csv")

In [13]: example_tree = tr.data_to_tree(data_small, ["company", "job_category", "race", "gender"])

In [14]: example_tree.print()


  │
  ├──Apple
  │  │
  │  ├──Executive/Senior officials & Mgrs
  │  │  │
  │  │  ├──Asian
  │  │  │  │
  │  │  │  ├──male: 10
  │  │  │  │
  │  │  │  └──female: 4
  │  │  │
  │  │  ├──Latino
  │  │  │  │
  │  │  │  ├──male: 2
  │  │  │  │
  │  │  │  └──female: 0
  │  │  │
  │  │  └──White
  │  │     │
  │  │     ├──male: 73
  │  │     │
  │  │     └──female: 15
  │  │
  │  └──Professionals
  │     │
  │     ├──Asian
  │     │  │
  │     │  ├──male: 6972
  │     │  │
  │     │  └──female: 2650
  │     │
  │     ├──Latino
  │     │  │
  │     │  ├──male: 799
  │     │  │
  │     │  └──female: 382
  │     │
  │     └──White
  │        │
  │        ├──male: 9012
  │        │
  │        └──female: 2635
  │
  ├──Facebook
  │  │
  │  ├──Executive/Senior officials & Mgrs
  │  │  │
  │  │  ├──Asian
  │  │  │  │
  │  │  │  ├──male: 74
  │  │  │  │
  │  │  │  └──female: 30
  │  │  │
  │  │  ├──Latino
  │  │  │  │
  │  │  │  ├──male: 9
  │  │  │  │
  │  │  │  └──female: 7
  │  │  │
  │  │  └──White
  │  │     │
  │  │     ├──male: 254
  │  │     │
  │  │     └──female: 94
  │  │
  │  └──Professionals
  │     │
  │     ├──Asian
  │     │  │
  │     │  ├──male: 2440
  │     │  │
  │     │  └──female: 1112
  │     │
  │     ├──Latino
  │     │  │
  │     │  ├──male: 209
  │     │  │
  │     │  └──female: 133
  │     │
  │     └──White
  │        │
  │        ├──male: 2830
  │        │
  │        └──female: 983
  │
  └──Google
     │
     ├──Executive/Senior officials & Mgrs
     │  │
     │  ├──Asian
     │  │  │
     │  │  ├──male: 6
     │  │  │
     │  │  └──female: 0
     │  │
     │  ├──Latino
     │  │  │
     │  │  ├──male: 0
     │  │  │
     │  │  └──female: 0
     │  │
     │  └──White
     │     │
     │     ├──male: 20
     │     │
     │     └──female: 4
     │
     └──Professionals
        │
        ├──Asian
        │  │
        │  ├──male: 8622
        │  │
        │  └──female: 3509
        │
        ├──Latino
        │  │
        │  ├──male: 1107
        │  │
        │  └──female: 376
        │
        └──White
           │
           ├──male: 13883
           │
           └──female: 3302

Note that we used the small dataset in the above example because, otherwise, the output would be too long to include here. However, we encourage you to play around with the data_to_tree function (along with the tree’s print method) with the full dataset. You’ll notice that this simple use of trees can already give you more insights into the data that by just looking at the numbers in a spreadsheet.

Task 1: Counts and verbose labels

The tree we return from data_to_tree only includes a value for the count attribute in the leaf nodes (in all other nodes, the value is set to None). Furthermore, the verbose_label attribute is None for all nodes. In Task 1, you will complete the following two recursive functions in treemap.py to respectively compute count for all internal nodes and to set the verbose_label for all nodes (note: the verbose label of the root node should just be an empty string).

Your solution to each must be recursive. Non-recursive solutions (i.e., functions that do not call themselves with an input that is in some way smaller) will not receive credit for this task. Furthermore, each function should be generalizable, working for a tree of any depth. As a guideline, in our implementation each of these functions requires fewer than ten lines of code.

def compute_internal_counts(t):
    '''
    Assign a count to the interior nodes.  The count of the leaves
    should already be set.  The count of an internal node is the sum
    of the counts of its children.

    Inputs:
        t (Tree): a tree

    Returns:
        The input tree t should be modified so that every internal node's
        count is set to be the sum of the counts of its children.

        The return value will be:
        - If the tree has no children: the value of the count attribute
        - If the tree has children: the sum of the counts of the children
    '''

def compute_verbose_labels(t, prefix=None):
    '''
    Assign a verbose label to all nodes. Verbose labels contain the
    full path to that node through the tree. For example, following the
    path "Google" --> "female" --> "white" should create the verbose label
    "Google: female: white". For the root node, the verbose label should be
    an empty string ("").

    Inputs:
        t: a tree
        prefix (string): Prefix to add to verbose label

    Outputs:
        Nothing. The input tree t should be modified to contain
            verbose labels for all nodes
    '''

Testing Task 1

You can informally test these functions from IPython by printing out the tree after calling one of these functions, and checking whether whether the count or verbose_label are set correctly. We suggest you use the small dataset, which is easier to check manually.

For example, you can check compute_internal_counts as follows:

In [23]: data_small = treemap.load_diversity_data("data/diversity-small.csv")

In [24]: tree_small = tr.data_to_tree(data_small, ["company", "race", "gender"])

In [25]: treemap.compute_internal_counts(tree_small)
Out[25]: 61558

In [26]: tree_small.print()

: 61558
  │
  ├──Apple: 22554
  │  │
  │  ├──Asian: 9636
  │  │  │
  │  │  ├──male: 6982
  │  │  │
  │  │  └──female: 2654
  │  │
  │  ├──Latino: 1183
  │  │  │
  │  │  ├──male: 801
  │  │  │
  │  │  └──female: 382
  │  │
  │  └──White: 11735
  │     │
  │     ├──male: 9085
  │     │
  │     └──female: 2650
  │
  ├──Facebook: 8175
  │  │
  │  ├──Asian: 3656
  │  │  │
  │  │  ├──male: 2514
  │  │  │
  │  │  └──female: 1142
  │  │
  │  ├──Latino: 358
  │  │  │
  │  │  ├──male: 218
  │  │  │
  │  │  └──female: 140
  │  │
  │  └──White: 4161
  │     │
  │     ├──male: 3084
  │     │
  │     └──female: 1077
  │
  └──Google: 30829
     │
     ├──Asian: 12137
     │  │
     │  ├──male: 8628
     │  │
     │  └──female: 3509
     │
     ├──Latino: 1483
     │  │
     │  ├──male: 1107
     │  │
     │  └──female: 376
     │
     └──White: 17209
        │
        ├──male: 13903
        │
        └──female: 3306

You can check compute_verbose_labels as follows (note how the print method has an optional argument to print the verbose labels):

In [27]: data_small = treemap.load_diversity_data("data/diversity-small.csv")

In [28]: tree_small = tr.data_to_tree(data_small, ["company", "race", "gender"])

In [29]: treemap.compute_verbose_labels(tree_small)

In [30]: tree_small.print(verbose=True)


  │
  ├──Apple
  │  │
  │  ├──Apple: Asian
  │  │  │
  │  │  ├──Apple: Asian: male: 6982
  │  │  │
  │  │  └──Apple: Asian: female: 2654
  │  │
  │  ├──Apple: Latino
  │  │  │
  │  │  ├──Apple: Latino: male: 801
  │  │  │
  │  │  └──Apple: Latino: female: 382
  │  │
  │  └──Apple: White
  │     │
  │     ├──Apple: White: male: 9085
  │     │
  │     └──Apple: White: female: 2650
  │
  ├──Facebook
  │  │
  │  ├──Facebook: Asian
  │  │  │
  │  │  ├──Facebook: Asian: male: 2514
  │  │  │
  │  │  └──Facebook: Asian: female: 1142
  │  │
  │  ├──Facebook: Latino
  │  │  │
  │  │  ├──Facebook: Latino: male: 218
  │  │  │
  │  │  └──Facebook: Latino: female: 140
  │  │
  │  └──Facebook: White
  │     │
  │     ├──Facebook: White: male: 3084
  │     │
  │     └──Facebook: White: female: 1077
  │
  └──Google
     │
     ├──Google: Asian
     │  │
     │  ├──Google: Asian: male: 8628
     │  │
     │  └──Google: Asian: female: 3509
     │
     ├──Google: Latino
     │  │
     │  ├──Google: Latino: male: 1107
     │  │
     │  └──Google: Latino: female: 376
     │
     └──Google: White
        │
        ├──Google: White: male: 13903
        │
        └──Google: White: female: 3306

To run the automated tests for this task only with the small dataset, you can run the following:

$ py.test -x -v -k "count and small"

$ py.test -x -v -k "verbose and small"

To run all the Task 1 tests (with both the small and full datasets), run this:

$ py.test -x -v -k count

$ py.test -x -v -k verbose

Task 2

Rather than always creating a treemap of the full set of data, you might first want to subset the data. For example, rather than trying to look at a particular small area of interest to you in a larger treemap, you could prune the tree, which involves removing nodes (and their children) that have a particular characteristic.

In this task, you will write a function that takes as input a tree, as well as a list of labels identifying nodes to discard (values_to_discard). Your function must recursively traverse the tree, returning a copy of this original tree with all nodes whose labels are in values_to_discard removed, along with their children. Do not modify the original tree. You may assume (without needing to verify) that values_to_discard does not contain all labels for a particular level. If it did contain all labels for a particular level (e.g., it included both male and female), no employees would be left in the tree, and the tree’s structure would also be broken. Do not worry about that case.

In particular, you will complete the following function:

def prune_tree(original_sub_tree, values_to_discard):
    '''
    Returns a tree with any node whose label is in the list values_to_discard
    (and thus all of its children) pruned. This function should return a copy
    of the original tree and should not destructively modify the original tree.
    The pruning step must be recursive.

    Inputs:
        t (Tree): a tree
        values_to_discard (list of strings): A list of strings specifying the
                  labels of nodes to discard

    Returns: a new Tree object representing the pruned tree
    '''

If this function is called on a tree on which we have previously called compute_internal_counts, the counts for internal nodes will change if part of the tree is pruned. You do not need to re-compute these internal node counts and, instead the copy of the tree your function returns should contain count for all leaf nodes, but set count to None for all internal nodes.

Keep in mind that this task (like others in this assignment) is conceptually complex, yet does not require much code. Our prune_tree implementation contains fewer than 10 lines of code.

Testing Task 2

We suggest you start by testing your function on the small dataset. Let’s start by loading the tree with two levels, company and gender:

In [103]: data_small = treemap.load_diversity_data("data/diversity-small.csv")

In [104]: tree_small = tr.data_to_tree(data_small, ["company", "gender"])

In [105]: treemap.compute_internal_counts(tree_small)
Out[105]: 61558

In [106]: tree_small.print()

: 61558
  │
  ├──Apple: 22554
  │  │
  │  ├──male: 16868
  │  │
  │  └──female: 5686
  │
  ├──Facebook: 8175
  │  │
  │  ├──male: 5816
  │  │
  │  └──female: 2359
  │
  └──Google: 30829
     │
     ├──male: 23638
     │
     └──female: 7191

Here is the result of pruning Facebook:

In [108]: pruned_tree = treemap.prune_tree(tree_small, ["Facebook"])

In [109]: pruned_tree.print()


  │
  ├──Apple
  │  │
  │  ├──male: 16868
  │  │
  │  └──female: 5686
  │
  └──Google
     │
     ├──male: 23638
     │
     └──female: 7191

Here is the result of pruning male:

In [111]: pruned_tree = treemap.prune_tree(tree_small, ["male"])

In [112]: pruned_tree.print()


  │
  ├──Apple
  │  │
  │  └──female: 5686
  │
  ├──Facebook
  │  │
  │  └──female: 2359
  │
  └──Google
     │
     └──female: 7191

And here is the result of pruning Facebook, Apple, and male. This highlights how we can specify multiple labels per level, as well as labels in multiple levels:

In [113]: pruned_tree = treemap.prune_tree(tree_small, ["Facebook", "male", "Apple"])

In [114]: pruned_tree.print()


  │
  └──Google
     │
     └──female: 7191

Finally, here is an example with the full dataset. Once again, notice how we can prune multiple labels across multiple levels:

In [115]: data = treemap.load_diversity_data("data/diversity.csv")

In [116]: tree_full = tr.data_to_tree(data, ["job_category", "race", "gender"])

In [117]: treemap.compute_internal_counts(tree_full)
Out[117]: 354964

In [118]: pruned_tree = treemap.prune_tree(tree_full, ["Technicians", "Sales workers", "Two_or_more_races", "male"])

In [119]: pruned_tree.print()


  │
  ├──Administrative support
  │  │
  │  ├──American_Indian_Alaskan_Native
  │  │  │
  │  │  └──female: 78
  │  │
  │  ├──Asian
  │  │  │
  │  │  └──female: 1363
  │  │
  │  ├──Black_or_African_American
  │  │  │
  │  │  └──female: 1349
  │  │
  │  ├──Latino
  │  │  │
  │  │  └──female: 1614
  │  │
  │  ├──Native_Hawaiian_or_Pacific_Islander
  │  │  │
  │  │  └──female: 62
  │  │
  │  └──White
  │     │
  │     └──female: 6950
  │
  ├──Craft workers
  │  │
  │  ├──American_Indian_Alaskan_Native
  │  │  │
  │  │  └──female: 1
  │  │
  │  ├──Asian
  │  │  │
  │  │  └──female: 5
  │  │
  │  ├──Black_or_African_American
  │  │  │
  │  │  └──female: 0
  │  │
  │  ├──Latino
  │  │  │
  │  │  └──female: 4
  │  │
  │  ├──Native_Hawaiian_or_Pacific_Islander
  │  │  │
  │  │  └──female: 0
  │  │
  │  └──White
  │     │
  │     └──female: 22
  │
  ├──Executive/Senior officials & Mgrs
  │  │
  │  ├──American_Indian_Alaskan_Native
  │  │  │
  │  │  └──female: 1
  │  │
  │  ├──Asian
  │  │  │
  │  │  └──female: 157
  │  │
  │  ├──Black_or_African_American
  │  │  │
  │  │  └──female: 19
  │  │
  │  ├──Latino
  │  │  │
  │  │  └──female: 31
  │  │
  │  ├──Native_Hawaiian_or_Pacific_Islander
  │  │  │
  │  │  └──female: 0
  │  │
  │  └──White
  │     │
  │     └──female: 578
  │
  ├──First/Mid officials & Mgrs
  │  │
  │  ├──American_Indian_Alaskan_Native
  │  │  │
  │  │  └──female: 39
  │  │
  │  ├──Asian
  │  │  │
  │  │  └──female: 3871
  │  │
  │  ├──Black_or_African_American
  │  │  │
  │  │  └──female: 550
  │  │
  │  ├──Latino
  │  │  │
  │  │  └──female: 864
  │  │
  │  ├──Native_Hawaiian_or_Pacific_Islander
  │  │  │
  │  │  └──female: 54
  │  │
  │  └──White
  │     │
  │     └──female: 10046
  │
  ├──laborers and helpers
  │  │
  │  ├──American_Indian_Alaskan_Native
  │  │  │
  │  │  └──female: 0
  │  │
  │  ├──Asian
  │  │  │
  │  │  └──female: 20
  │  │
  │  ├──Black_or_African_American
  │  │  │
  │  │  └──female: 20
  │  │
  │  ├──Latino
  │  │  │
  │  │  └──female: 38
  │  │
  │  ├──Native_Hawaiian_or_Pacific_Islander
  │  │  │
  │  │  └──female: 0
  │  │
  │  └──White
  │     │
  │     └──female: 22
  │
  ├──operatives
  │  │
  │  ├──American_Indian_Alaskan_Native
  │  │  │
  │  │  └──female: 0
  │  │
  │  ├──Asian
  │  │  │
  │  │  └──female: 3
  │  │
  │  ├──Black_or_African_American
  │  │  │
  │  │  └──female: 11
  │  │
  │  ├──Latino
  │  │  │
  │  │  └──female: 9
  │  │
  │  ├──Native_Hawaiian_or_Pacific_Islander
  │  │  │
  │  │  └──female: 0
  │  │
  │  └──White
  │     │
  │     └──female: 22
  │
  ├──Professionals
  │  │
  │  ├──American_Indian_Alaskan_Native
  │  │  │
  │  │  └──female: 165
  │  │
  │  ├──Asian
  │  │  │
  │  │  └──female: 22410
  │  │
  │  ├──Black_or_African_American
  │  │  │
  │  │  └──female: 2449
  │  │
  │  ├──Latino
  │  │  │
  │  │  └──female: 3226
  │  │
  │  ├──Native_Hawaiian_or_Pacific_Islander
  │  │  │
  │  │  └──female: 302
  │  │
  │  └──White
  │     │
  │     └──female: 28145
  │
  └──Service workers
     │
     ├──American_Indian_Alaskan_Native
     │  │
     │  └──female: 2
     │
     ├──Asian
     │  │
     │  └──female: 46
     │
     ├──Black_or_African_American
     │  │
     │  └──female: 17
     │
     ├──Latino
     │  │
     │  └──female: 137
     │
     ├──Native_Hawaiian_or_Pacific_Islander
     │  │
     │  └──female: 6
     │
     └──White
        │
        └──female: 104

To run the automated tests for this task only with the small dataset, you can run the following:

$ py.test -x -v -k "prune and small"

To run all the Task 1 tests (with both the small and full datasets), run this:

$ py.test -x -v -k prune

Drawing Treemaps

Recall that a treemap looks like this:

Notice how all the individual shapes in the diagram are all rectangles. In fact, drawing a treemap mostly involves figuring out the exact rectangles we need to draw on a “canvas”. Our canvas is a coordinate system from (0.0, 0.0) (the top-left corner) to (1.0, 1.0) (the bottom-right corner). This is often referred to as the bounding rectangle, because it describes the bounds of where we can “draw” things (in this case, rectangles)

An individual rectangle is specified by providing its origin point (the position of the top-left corner of the rectangle) and its size (its width along the x axis and its height along the y axis).

We provide a simple Rectangle class in treemap.py and a draw_rectangles function in drawing.py that will visualize a list of rectangles. For example, the following code draws a rectangle with origin (0.25, 0.5), width 0.75 and height 0.25:

In [45]: r = treemap.Rectangle((0.25,0.5), (0.75, 0.25), "Example", "Example Rectangle")

In [46]: drawing.draw_rectangles([r])

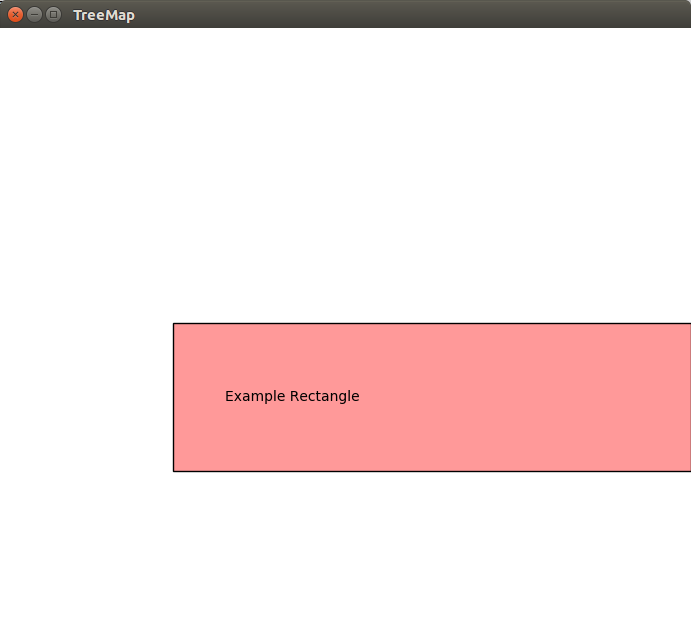

This will open a window that displays something like this:

Note: you must close this window before you can continue entering code in IPython.

The following code draws two rectangles:

In [54]: r1 = treemap.Rectangle((0.20,0.20), (0.20, 0.60), "Example 1", "Example Rectangle 1")

In [55]: r2 = treemap.Rectangle((0.60,0.20), (0.20, 0.60), "Example 2", "Example Rectangle 2")

In [56]: drawing.draw_rectangles([r1, r2])

And will show something like this:

So, we need to figure out exactly what rectangles to generate (and with what positions and sizes) for a given tree.

To figure out the size of the rectangles, we will rely on the counts computed by compute_internal_counts. We will refer to the count we computed as the weight of a given node; as we’ll see, this will make more sense in the context of the treemap algorithm.

For example, consider this tree with only one employer, and with the internal counts already computed:

: 22554
  │
  └──Apple: 22554
     │
     ├──Asian: 9636
     │  │
     │  ├──male: 6982
     │  │
     │  └──female: 2654
     │
     ├──Latino: 1183
     │  │
     │  ├──male: 801
     │  │
     │  └──female: 382
     │
     └──White: 11735
        │
        ├──male: 9085
        │
        └──female: 2650

The Apple: White subtree has two leaf nodes with weights 9085 and 2650. The weight of the White node is the sum of those weights and, in turn, the weight of the Apple node is the sum of the weights of Asian, Latino, and White.

Once the tree is decorated with the correct weights (counts), we need to divide our bounding rectangle into a collection of smaller rectangles based on the shape of the tree and the distribution of the weights (this is also known as the mass of the rectangles). Each rectangle in the resulting partition will have an associated label: the verbose_label for that node.

To describe how regions of the bounding rectangle are allocated in the treemap algorithm, we will start by looking at the following tree, which divides the dataset only by job category:

In [57]: data = treemap.load_diversity_data("data/diversity.csv")

In [58]: tree_full = tr.data_to_tree(data, ["job_category"])

In [59]: treemap.compute_internal_counts(tree_full)
Out[59]: 354964

In [60]: tree_full.print()

: 354964
  │
  ├──Administrative support: 18792
  │
  ├──Craft workers: 543
  │
  ├──Executive/Senior officials & Mgrs: 3536
  │
  ├──First/Mid officials & Mgrs: 52036
  │
  ├──laborers and helpers: 190
  │
  ├──operatives: 266
  │
  ├──Professionals: 204025
  │
  ├──Sales workers: 42615
  │
  ├──Service workers: 904
  │
  └──Technicians: 32057

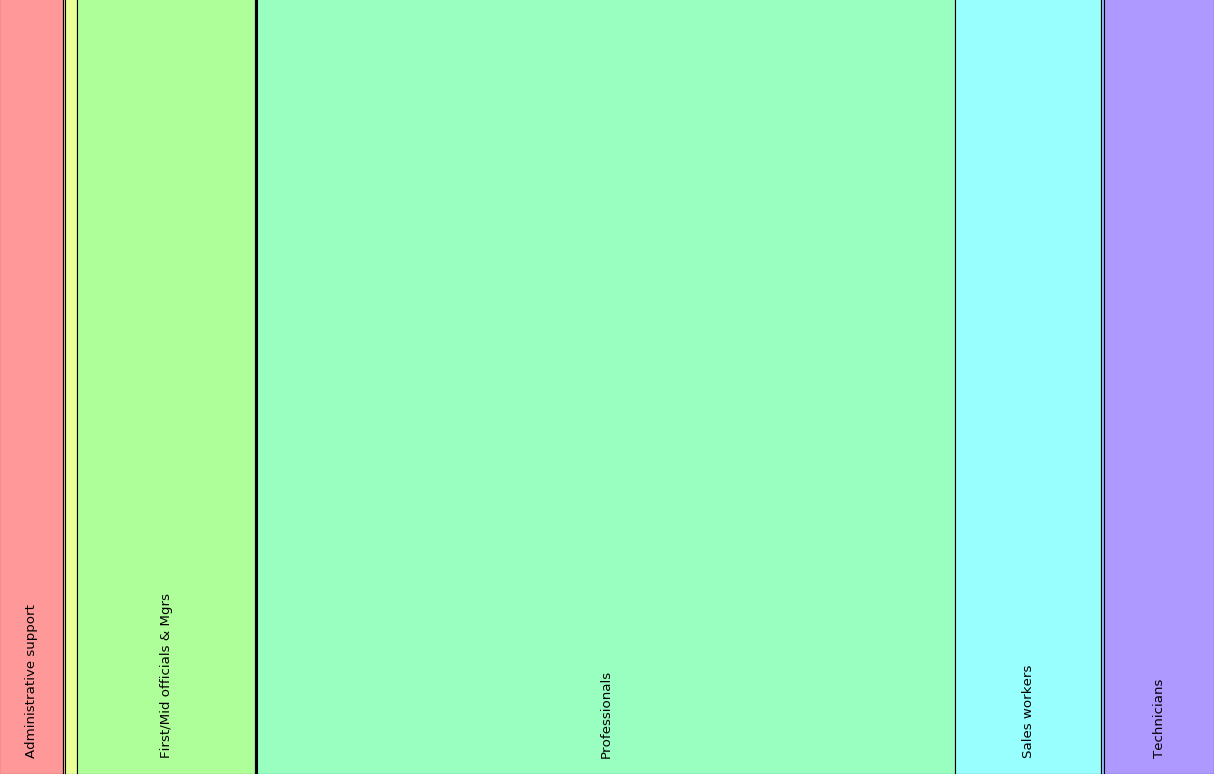

The treemap for the above tree would be the following:

Treemap splitting by job category

The treemap algorithm splits the initial bounding rectangle into sub-rectangles – one per child of the root. The proportion of a child’s sub-rectangle is determined by its weight as a fraction of the total weight of its parent. For example, the treemap algorithm splits the initial rectangle from left to right into ten pieces, with each piece representing a job category. Note that pieces representing job categories with few employees are too skinny to see clearly in the treemap. Given an initial bounding rectangle with its origin at (0,0), a width of 1.0 and a height of 1.0, the resulting partition would be:

Broken down only by job category

Verbose Label	X	Y	Width	Height
Administrative support	0.000	0.000	0.053	1.000
Craft workers	0.053	0.000	0.002	1.000
Executive/Senior officials & Mgrs	0.054	0.000	0.010	1.000
First/Mid officials & Mgrs	0.064	0.000	0.147	1.000
laborers and helpers	0.211	0.000	0.001	1.000
operatives	0.212	0.000	0.001	1.000
Professionals	0.212	0.000	0.575	1.000
Sales workers	0.787	0.000	0.120	1.000
Service workers	0.907	0.000	0.003	1.000
Technicians	0.910	0.000	0.090	1.000

Each row corresponds to a rectangle, and each rectangle is associated with a node in the tree. In this case, the children of the tree’s root are all leaf nodes, and that is what we visualize on the treemap. The first column in this table identifies the tree nodes’ verbose label (verbose_label), which in this specific case happens to be identical to label as the tree contains only one level beyond the root node. The next four columns contain the components of the rectangles rounded to three digits for clarity. Notice that 57.5% of the initial rectangle (by width) went to Professionals, while 1.0% went to Executive/Senior officials & Mgrs. These correspond to their relative weights of 204025/354964 and 3536/354964.

While making tables like the one above is not part of this assignment, writing strategic print statements to display analogous data while you are initially writing and debugging your program will help you to isolate errors that are due to your generation of the rectangles, as opposed to errors drawing the rectangles you generate. We highly recommend you print out such information, and we will ask you to show us these sorts of print-outs when helping you to debug your code.

Let’s look at a tree that breaks down the data further by gender, which introduces additional complexity by having multiple levels of the tree beyond the root:

In [61]: data = treemap.load_diversity_data("data/diversity.csv")

In [62]: tree_full = tr.data_to_tree(data, ["job_category", "gender"])

In [63]: treemap.compute_internal_counts(tree_full)
Out[63]: 354964

In [64]: tree_full.print()

: 354964
  │
  ├──Administrative support: 18792
  │  │
  │  ├──male: 7038
  │  │
  │  └──female: 11754
  │
  ├──Craft workers: 543
  │  │
  │  ├──male: 511
  │  │
  │  └──female: 32
  │
  ├──Executive/Senior officials & Mgrs: 3536
  │  │
  │  ├──male: 2738
  │  │
  │  └──female: 798
  │
  ├──First/Mid officials & Mgrs: 52036
  │  │
  │  ├──male: 36366
  │  │
  │  └──female: 15670
  │
  ├──laborers and helpers: 190
  │  │
  │  ├──male: 90
  │  │
  │  └──female: 100
  │
  ├──operatives: 266
  │  │
  │  ├──male: 221
  │  │
  │  └──female: 45
  │
  ├──Professionals: 204025
  │  │
  │  ├──male: 146371
  │  │
  │  └──female: 57654
  │
  ├──Sales workers: 42615
  │  │
  │  ├──male: 29209
  │  │
  │  └──female: 13406
  │
  ├──Service workers: 904
  │  │
  │  ├──male: 585
  │  │
  │  └──female: 319
  │
  └──Technicians: 32057
     │
     ├──male: 24483
     │
     └──female: 7574

The treemap for this tree would look like this:

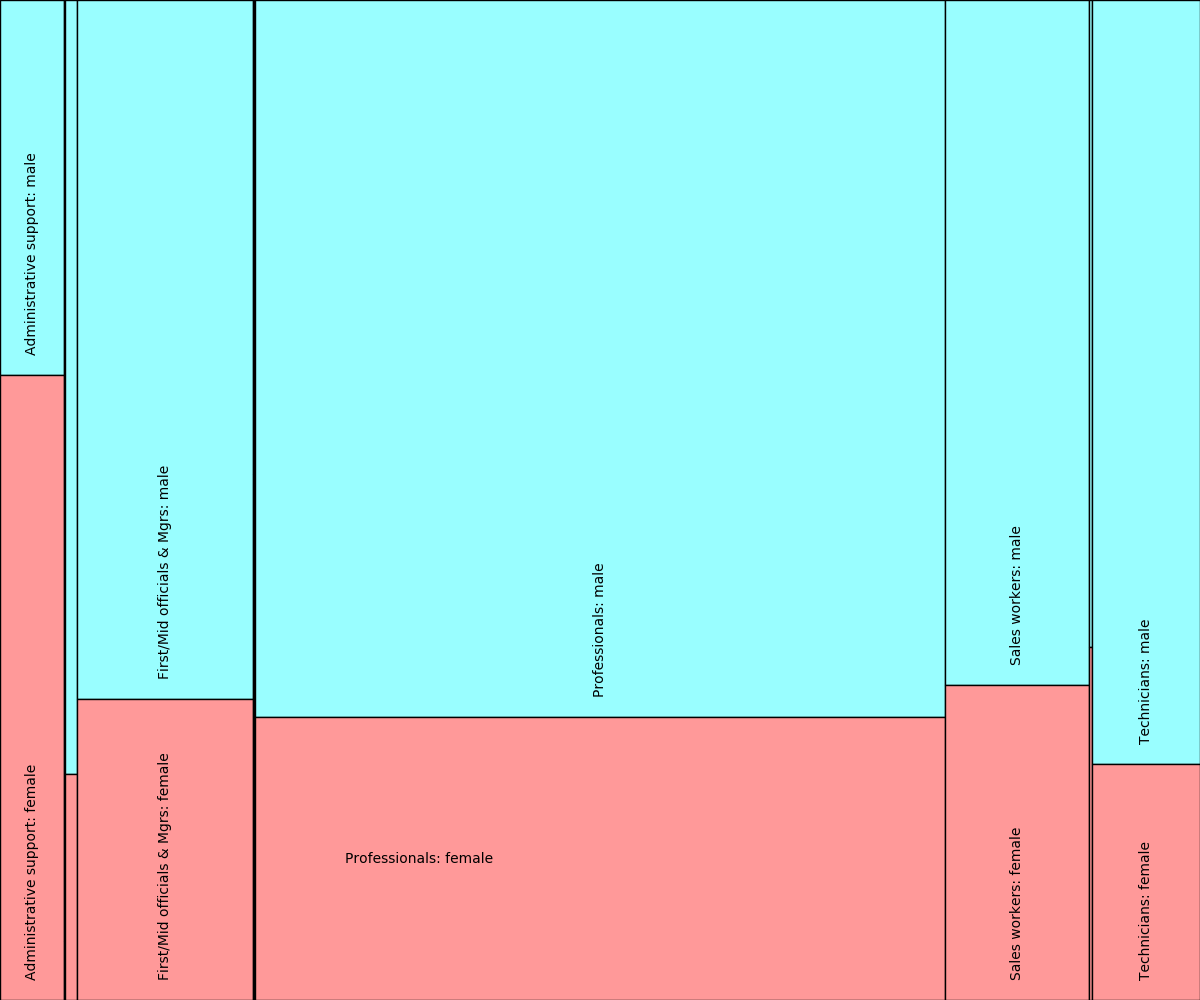

Treemap splitting by job category and gender

The treemap algorithm first splits the initial rectangle left to right by job category, just as for the previous tree. There is a second step, however, for this tree because it contains another level. This additional level of the tree represents the gender distribution within that job category. Notice that while the proportions for a particular job category are split the same as in the previous treemap, there is a subsequent split within each of those rectangles. That is, the rectangle representing a particular job category is then split by gender.

Pay close attention to the fact that the orientation of the split has also changed after progressing to this next level; rectangles representing gender are split (allocated) from top to bottom, rather than from left to right. As a result, the width for a particular job category for this treemap is identical to the width for that job category in the previous treemap. However, whereas the height of all nodes in the first example was 1.000, the height is distributed proportionally by gender in this second example. Assuming the initial bounding rectangle has its origin at (0,0), a width 1.0, and a height 1.0, the resulting partition would be:

Broken down by job category and gender

Verbose Label	X	Y	Width	Height
Administrative support: male	0.000	0.000	0.053	0.375
Administrative support: female	0.000	0.375	0.053	0.625
Craft workers: male	0.053	0.000	0.002	0.941
Craft workers: female	0.053	0.941	0.002	0.059
Executive/Senior officials & Mgrs: male	0.054	0.000	0.010	0.774
Executive/Senior officials & Mgrs: female	0.054	0.774	0.010	0.226
First/Mid officials & Mgrs: male	0.064	0.000	0.147	0.699
First/Mid officials & Mgrs: female	0.064	0.699	0.147	0.301
laborers and helpers: male	0.211	0.000	0.001	0.474
laborers and helpers: female	0.211	0.474	0.001	0.526
operatives: male	0.212	0.000	0.001	0.831
operatives: female	0.212	0.831	0.001	0.169
Professionals: male	0.212	0.000	0.575	0.717
Professionals: female	0.212	0.717	0.575	0.283
Sales workers: male	0.787	0.000	0.120	0.685
Sales workers: female	0.787	0.685	0.120	0.315
Service workers: male	0.907	0.000	0.003	0.647
Service workers: female	0.907	0.647	0.003	0.353
Technicians: male	0.910	0.000	0.090	0.764
Technicians: female	0.910	0.764	0.090	0.236

The above table represents the exact rectangles we would have to generate for this treemap. Notice how we don’t generate rectangles for the first level, e.g., we don’t generate a rectangle for all Technicians and, instead, generate the rectangles for the specific divisions within Technicians (Technicians: male and Technicians: female). In fact, when we draw the Technicians: male and Technicians: female rectangles, that encompasses the entire area that was used by Technicians in the first example.

Finally, while this example has two levels, your code should be able to construct treemaps from trees with an arbitrarily large number of levels. The orientation of the partitions alternates between left-to-right and top-to-bottom as we move down each level of the tree. If our tree had a third level beyond these two, that third level would again have been split left-to-right. Alternating the split at each level in the tree produces a picture that is much easier to understand than one in which all the partitions have the same orientation.

For example, the following treemap visualizes a tree with three levels:

Treemap splitting by job category, gender, and race

Once we get to this number of levels, it can be a bit hard to visually distinguish how the splits are being done but, in this case, the rectangles representing job category (the first level of the tree beyond the root) are split left-to-right. Then, the rectangles representing gender (the second level) are split top-to-bottom. Finally, the rectangles representing race (the final level of the tree) are again split left-to-right. A better color scheme might make this treemap more readable, but we do not need to concern ourselves with that in this assignment.

Task 3

Your final (and most complicated) task is to complete this function in treemap.py:

def compute_rectangles(t, bounding_rec_height=1.0, bounding_rec_width=1.0):
    '''
    Computes the rectangles for drawing a treemap of the provided tree

    Inputs:
        t (Tree): a tree
        bounding_rec_height, bounding_rec_width (floats): the size of
           the bounding rectangle.

    Returns: a list of Rectangle objects
    '''

This function takes a tree and, optionally, the height and width of the initial bounding rectangle, and returns a list of Rectangle objects.

Notice how we have already included the code to call compute_internal_counts and compute_verbose_labels. You do not need to call them before calling compute_rectangles.

As in Tasks 1 and 2, your code for computing the rectangles for the treemap must be recursive. Also, you may not make any assumptions about the number of levels in the tree.

Hint: compute_rectangles itself should not be recursive. Instead, write a recursive helper function that you will call from compute_rectangles.

The implementation of this function is not too complex (our solution is 25 lines long), but figuring out the recursion can be challenging. Make sure to think through the design of the recursion following the steps we gave in class.

Testing Task 3

We suggest you start by testing this function informally from IPython by printing out the rectangles produced by the function. Here are some sample calls using the small dataset:

In [80]: data_small = treemap.load_diversity_data("data/diversity-small.csv")

In [81]: tree_small = tr.data_to_tree(data_small, ["company"])

In [82]: rects = treemap.compute_rectangles(tree_small)

In [83]: for r in rects:
    ...:     print(r)
RECTANGLE 0.0000 0.0000 0.3664 1.0000 Apple
RECTANGLE 0.3664 0.0000 0.1328 1.0000 Facebook
RECTANGLE 0.4992 0.0000 0.5008 1.0000 Google

In [84]: tree_small = tr.data_to_tree(data_small, ["company", "gender"])

In [85]: rects = treemap.compute_rectangles(tree_small)

In [86]: for r in rects:
    ...:     print(r)
RECTANGLE 0.0000 0.0000 0.3664 0.7479 Apple: male
RECTANGLE 0.0000 0.7479 0.3664 0.2521 Apple: female
RECTANGLE 0.3664 0.0000 0.1328 0.7114 Facebook: male
RECTANGLE 0.3664 0.7114 0.1328 0.2886 Facebook: female
RECTANGLE 0.4992 0.0000 0.5008 0.7667 Google: male
RECTANGLE 0.4992 0.7667 0.5008 0.2333 Google: female

And here are sample calls that correspond to the two treemaps we used when explaining the treemap algorithm:

In [96]: data = treemap.load_diversity_data("data/diversity.csv")

In [97]: tree_full = tr.data_to_tree(data, ["job_category"])

In [98]: rects = treemap.compute_rectangles(tree_full)

In [99]: for r in rects:
    ...:     print(r)
RECTANGLE 0.0000 0.0000 0.0529 1.0000 Administrative support
RECTANGLE 0.0529 0.0000 0.0015 1.0000 Craft workers
RECTANGLE 0.0545 0.0000 0.0100 1.0000 Executive/Senior officials & Mgrs
RECTANGLE 0.0644 0.0000 0.1466 1.0000 First/Mid officials & Mgrs
RECTANGLE 0.2110 0.0000 0.0005 1.0000 laborers and helpers
RECTANGLE 0.2116 0.0000 0.0007 1.0000 operatives
RECTANGLE 0.2123 0.0000 0.5748 1.0000 Professionals
RECTANGLE 0.7871 0.0000 0.1201 1.0000 Sales workers
RECTANGLE 0.9071 0.0000 0.0025 1.0000 Service workers
RECTANGLE 0.9097 0.0000 0.0903 1.0000 Technicians

In [100]: tree_full = tr.data_to_tree(data, ["job_category", "gender"])

In [101]: rects = treemap.compute_rectangles(tree_full)

In [102]: for r in rects:
     ...:     print(r)
RECTANGLE 0.0000 0.0000 0.0529 0.3745 Administrative support: male
RECTANGLE 0.0000 0.3745 0.0529 0.6255 Administrative support: female
RECTANGLE 0.0529 0.0000 0.0015 0.9411 Craft workers: male
RECTANGLE 0.0529 0.9411 0.0015 0.0589 Craft workers: female
RECTANGLE 0.0545 0.0000 0.0100 0.7743 Executive/Senior officials & Mgrs: male
RECTANGLE 0.0545 0.7743 0.0100 0.2257 Executive/Senior officials & Mgrs: female
RECTANGLE 0.0644 0.0000 0.1466 0.6989 First/Mid officials & Mgrs: male
RECTANGLE 0.0644 0.6989 0.1466 0.3011 First/Mid officials & Mgrs: female
RECTANGLE 0.2110 0.0000 0.0005 0.4737 laborers and helpers: male
RECTANGLE 0.2110 0.4737 0.0005 0.5263 laborers and helpers: female
RECTANGLE 0.2116 0.0000 0.0007 0.8308 operatives: male
RECTANGLE 0.2116 0.8308 0.0007 0.1692 operatives: female
RECTANGLE 0.2123 0.0000 0.5748 0.7174 Professionals: male
RECTANGLE 0.2123 0.7174 0.5748 0.2826 Professionals: female
RECTANGLE 0.7871 0.0000 0.1201 0.6854 Sales workers: male
RECTANGLE 0.7871 0.6854 0.1201 0.3146 Sales workers: female
RECTANGLE 0.9071 0.0000 0.0025 0.6471 Service workers: male
RECTANGLE 0.9071 0.6471 0.0025 0.3529 Service workers: female
RECTANGLE 0.9097 0.0000 0.0903 0.7637 Technicians: male
RECTANGLE 0.9097 0.7637 0.0903 0.2363 Technicians: female

Once you are confident that you’re producing the correct rectangles, you can start visualizing them using the draw_rectangles function:

In [87]: drawing.draw_rectangles(rects)

To run the automated tests for this task only with the small dataset, you can run the following:

$ py.test -x -v -k "rectangles and small"

To run all the Task 1 tests (with both the small and full datasets), run this:

$ py.test -x -v -k rectangles

Putting it all together

Once you have completed all the tasks, you will be able to easily generate any treemap you want from the command-line. In particular, you can run the following:

python3 diversity.py -i data/diversity.csv -c CATEGORIES_LIST

Where CATEGORIES_LIST is a comma-separated list of categories to use when dividing the treemap. This corresponds to the hierarchy parameter we pass to data_to_tree.

Here are some examples and the expected treemap. Take into account that running diversity.py will open a new window with the treemap; you will need to close that window before you can return to the command line.

NOTE: If you are passing all the tests, do not worry if the produced treemaps do not match ours exactly! Your completeness grade will depend on the result of the tests, not on the exact graphics you produce.

python3 treemap.py data/diversity.csv -c job_category,gender

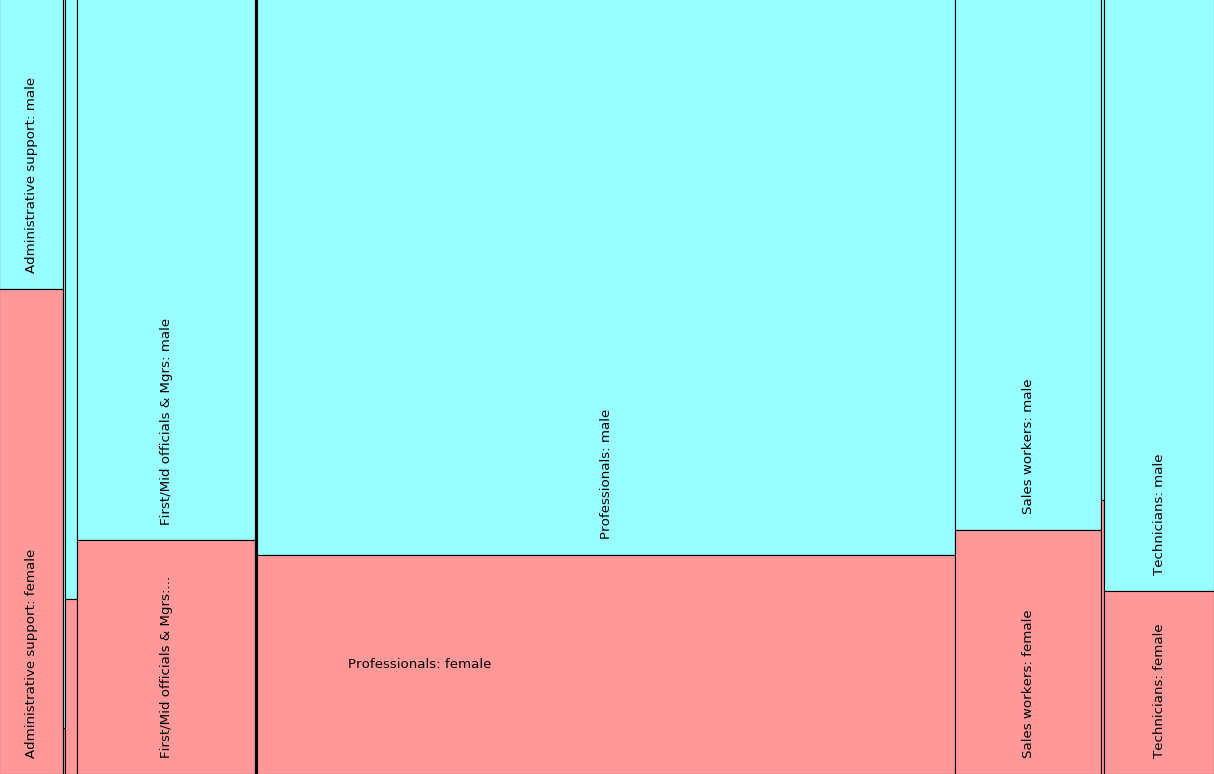

Treemap of gender diversity by job category

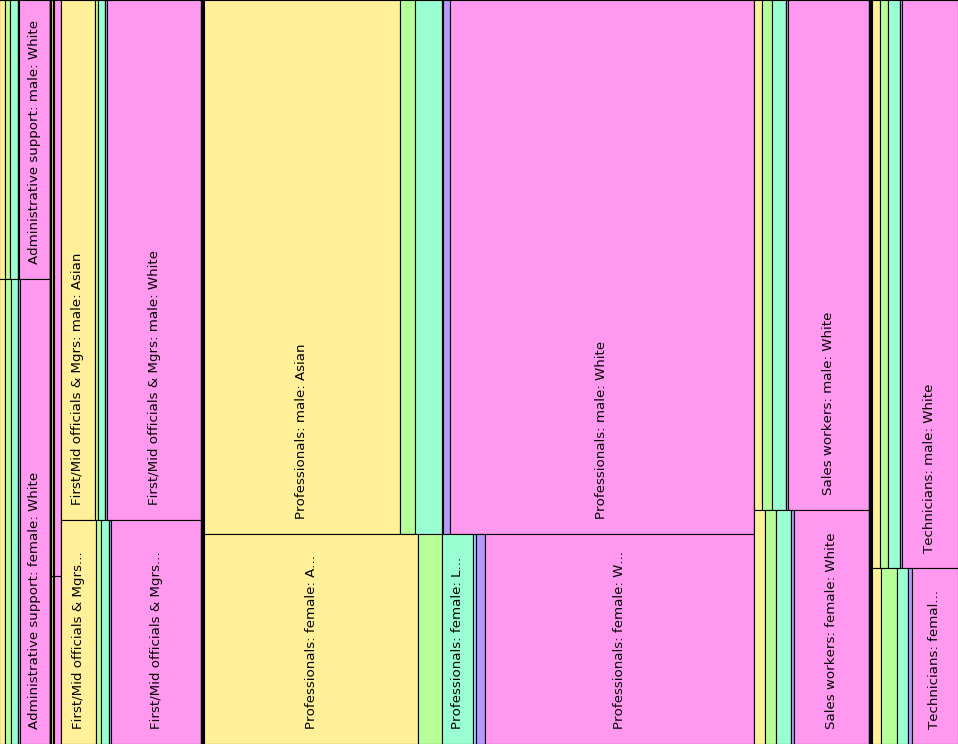

python3 treemap.py data/diversity.csv -c job_category,gender,race

Treemap of gender and racial diversity by job category

python3 treemap.py data/diversity.csv -c company,gender,race

Treemap of gender and racial diversity by company

Additionally, you can use a -p parameter to specify labels to prune:

python3 treemap.py data/diversity.csv -c company,race,gender -p Asian,White

A view of the non-white and non-asian Silicon Valley workforce

python3 treemap.py data/diversity.csv -c company,gender,race -p "Adobe,Airbnb,Apple,Cisco,eBay,Facebook,Google,HP Inc.,HPE,Intel,Intuit,LinkedIn,Lyft,Nvidia,Salesforce,Square,Twitter,Uber"

Gender and racial diversity of companies with fewer than 1,000 employees

Grading

Programming assignments will be graded according to a general rubric. Specifically, we will assign points for completeness, correctness, design, and style. (For more details on the categories, see our PA Rubric page.)

The exact weights for each category will vary from one assignment to another. For this assignment, the weights will be:

• Completeness: 50%
• Correctness: 20%
• Design: 15%
• Style: 15%

In this assignment, the Design grade will largely be based on how you designed your recursive functions.

Please note that if you do not recursion in a given task, you can expect a considerable deduction in both the Correctness and Design portions of the rubric. If you do not use recursion at all in your code, you will receive a zero in both Correctness and Design.

Obtaining your test score

Like previous assignments, you can obtain your test score by running py.test followed by ../common/grader.py.

Continuous Integration

Continuous Integration (CI) is available for this assignment. For more details, please see our Continuous Integration page. We strongly encourage you to use CI in this assignment.

Submission

To submit your assignment, make sure that you have:

• put your name at the top of your file,
• registered for the assignment using chisubmit,
• added, committed, and pushed treemap.py to the git server, and
• run the chisubmit submission command.

Here are the relevant commands to run on the Linux command-line. (Remember to leave out the $ prompt when you type the command.)

$ chisubmit student assignment register pa7

$ git add treemap.py
$ git commit -m"Final version of PA #7 ready for submission"
$ git push

$ chisubmit student assignment submit pa7

Remember to push your code to the server early and often! Also, remember that you can submit as many times as you like before the deadline.

Acknowledgments: Gordon Kindlmann originally recommended drawing treemaps as good topic for an assignment.
