Class Meeting 03: Sensory-Motor Control

Today's Class Meeting

---

• Learning about sensory-motor control and PID control (here's a link to the slides)
• Writing code to enable Turtlebot3 to follow a line - here's a link to a sample solution for the line follower
• Gaining experience with pair programming (you can find your pair programming partner assignment in this Google spreadsheet)

What You'll Need for Today's Class

---

For today's class, you'll need the following tools/applications ready and running:

• The class Zoom room (access via Canvas)
• Your Ubuntu 20.04 programming environment

Sensory-Motor Control and PID Control

---

The content in this section summarizes the main points covered in today's lecture (here's a link to my slides).

One foundational concept in robotics is sensory-motor loops and control. The robot's sensor readings inform how it moves in its environment, which will then influence the next sensor readings from the robot, and the loop goes on. One of the most well known sensory-motor control methods is PID (Proportional Integral Derivative) control, which is depicted in the block diagram below:

The PID control function can be represented as follows:

Where K_p, K_i, and K_d, are the constant coefficients for the proportional, integral, and derivative terms; e(t) represents the difference between the goal (setpoint) and the sensor measurement (process variable). The three following graphs display how a system responds to a step change in the setpoint to each component of the PID controller separately and all the components combined at different values of K_p, K_i, and K_d.

This YouTube video by Brian Douglas is a great resource providing a clear explanation of the PID controller.

Coding Exercise: Line Following with Turtlebot3

---

You will complete this exercise by pair programming with another member of the class. You can find your pair programming assignments for this coding exercise in this Google spreadsheet.

Pair Programming

---

Pair programming usually involves 1 person as the driver, and the other person as the navigator.

• the driver would be the one writing code and talking about what they're currently writing, while
• the navigator looks out for mistakes and ensures that both people are on the same page with their approach.

If either one of you are feeling confused or uncertainty, make sure you discuss and clarify any confusion with your partner before moving forward.

A typical online pair programming session on Zoom would typically first involve the pair discussing a high level solution to the problem, then having the driver share their screen to code, while the navigator would view the screen share and request control if necessary (here's some info on Zoom's remote control feature useful).

There are many other tools for pair programming other than Zoom such as VSCode LiveShare or CodeShare. However, it is up to your pair to decide on what to use (though we recommend Zoom screen sharing for this excercise for simplicity).

We suggest that you spend your time on the line follower project by:

1. Turning your cameras on (if you can and are comfortable) and introducing yourselves to one another if you feel comfortable
2. Discussing the problem at a high level, possible solutions, and a first place to start
3. Spending the first half of your programming time with one partner as the driver and the other partner as the navigator
4. Swapping your driver/navigator roles for the second half of your programming time

Getting Started

---

To get started on this exercise, update the intro_robo class package to get the class_meeting_03_line_follower ROS package and starter code that we'll be using for this activity.

$ cd ~/catkin_ws/src/intro_robo
$ git pull
$ git submodule update --init --recursive
$ cd ~/catkin_ws && catkin_make
$ source devel/setup.bash

Next, launch our prepared Gazebo world file. In one terminal, run:

$ roscore

In a second terminal, run:

$ roslaunch class_meeting_03_line_follower robot_and_line_sim.launch

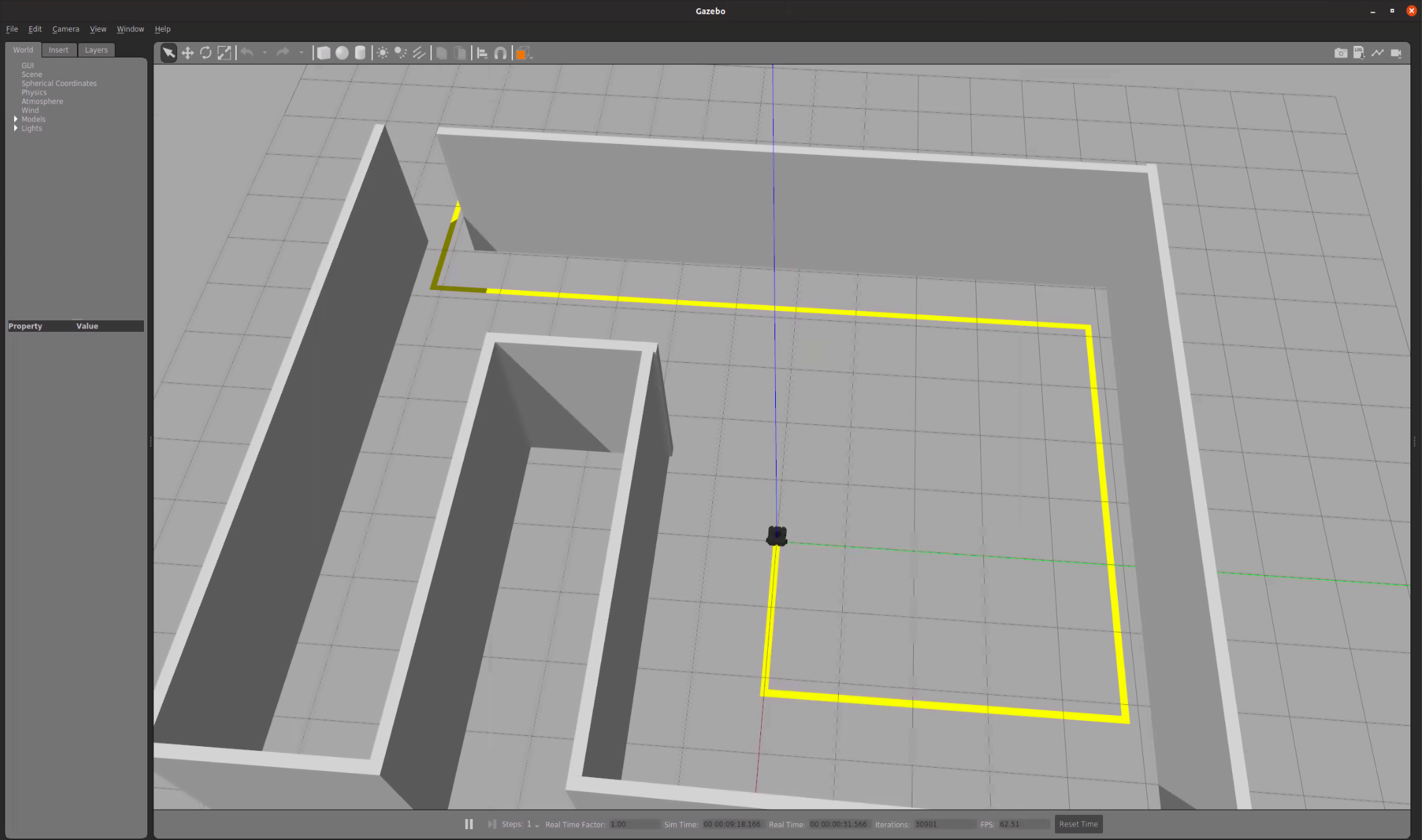

In Gazebo, you should see a Turtlebot3 at the beginning of a yellow line in an enclosed room (see image below). Your goal is to program the robot to follow the yellow line, writing your code in line_follower.py.

The starter code implements a helpful debugging window to help visualize the center of the computed yellow pixels. Once you've correctly identified the center of the yellow pixes, your window should look something like the following:

Understanding the Starter Code

---

In your group of 4, read through the starter code in line_follower.py. Discuss it together so that everyone in your group understands what's going on. We encourage you to look up what certain OpenCV functions do to better understand what's going on. Make sure that you all discuss and understand what the following variables represent and what values they will hold: h, w, d, cx, cy.

Implementing the Line Follower

---

To implement the line follower you'll work in pairs, where each pair will occupy the same Zoom room. Form pairs from your group of 4 (if you had a group of 3, you can stay together). Your pair can either stay in your breakout room or head to a new breakout room.

This programming exercise contains 2 main components:

1. Defining the range for what you will consider a "yellow" pixel in the image feed.
   • OpenCV uses the following ranges for H, S, and V: H: 0-179, S: 0-255, V: 0-255. As this OpenCV documentation suggests, you may find the following helpful (except you'll want to investigate yellow instead of green):

     green = np.uint8([[[0,255,0 ]]])
     hsv_green = cv2.cvtColor(green,cv2.COLOR_BGR2HSV)
     print(hsv_green)

   • You may also find the "Swatches" section on the HSV Wikipedia page helpful. Remember, you'll have to convert from the HSV ranges in the Wikipedia page H: 0-360, S: 0.0-1.0, V: 0.0-1.0 to the numeric ranges OpenCV expects H: 0-179, S: 0-255, V: 0-255.
     • For example, the HSV Wikipedia color \(H = 60^{\circ}, S = \frac{1}{4}, V = \frac{5}{8}\) converts to the OpenCV HSV values of \(H = \big(\frac{60^{\circ}}{360^{\circ}} \cdot 180 - 1\big) = 29, S = \big(\frac{1}{4} \cdot 256 - 1\big) = 63, V = \big(\frac{5}{8} \cdot 256 - 1\big) = 159\)
2. Implementing proportional control to enable the robot to follow the yellow line. This will involve:
   • Setting up a ROS publisher to control the movement of the robot.
   • Computing an "error" term (the difference between the goal and the sensed reality). This most important part here is defining the "goal" and the "reality" comparison.
   • Using the error term to determine how the robot moves in accordance with the principles of proportional control.

To run your code:

$ rosrun class_meeting_03_line_follower line_follower.py

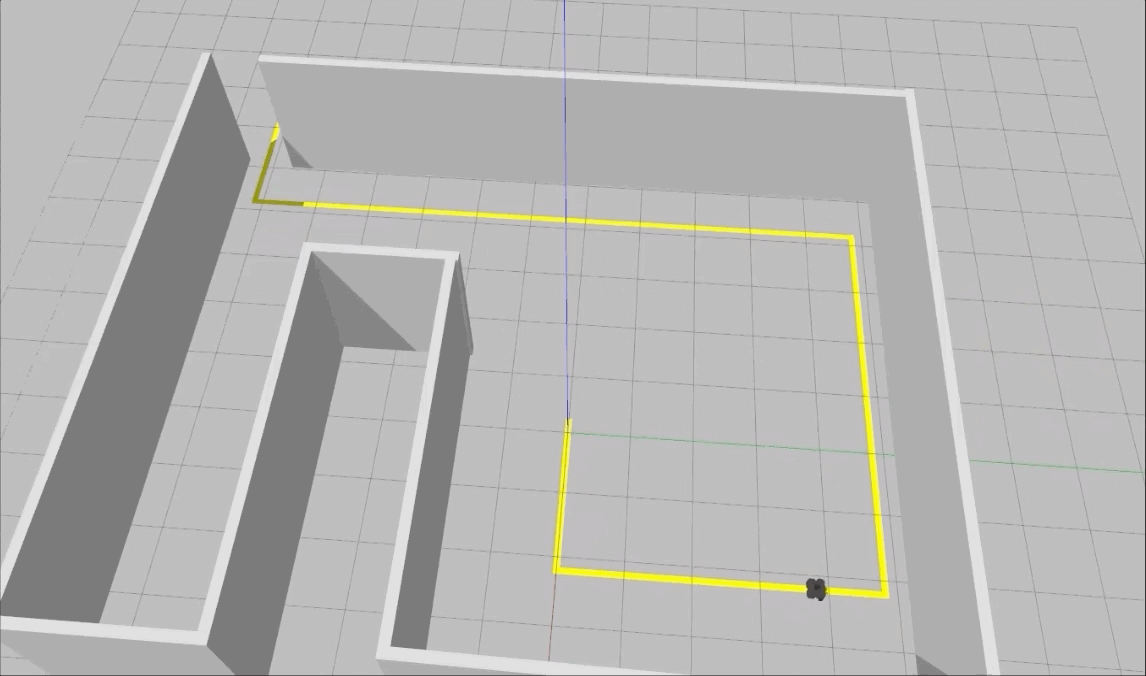

Once you've successfully implemented your proportional control line follower, it should look something like the following:

If you and your partner(s) finish early, feel free to use this time to work independently on your Warmup Project assignment.

Tips:

---

• If you are Googling HSV values for yellow, you will still need to perform minor conversions to fit OpenCV's numeric ranges
• Be careful of the image's coordinate system
• Think about what the error value used for PID control is, from the context of our problem and the image

Acknowledgments

---

The line-following exercise and code was taken and modified from Gaitech EDU. The world file used in this activity was modified from lfm.world from sudrag's line_follower_turtlebot Git repo.
