Class Meeting 2: Introduction to Gazebo


Today's Class Meeting


What You'll Need for Today's Class


Initial Instructions and Overview of Class Exercises for Today

For these class exercises, please work alongside one partner. Each of you will work individually on your own computers, but feel free to communicate and collaborate with your partner as you work.

Today, we will be completing the same exercises you did in Lab A, but this time, we'll be doing it in simulation. You'll learn:

Feel free to use the Gazebo simulator when working on your projects throughout the quarter. Often using Gazebo can be more convenient than physically coming to CSIL, so feel free to use that to your advantage. However, please note that your final project deliverables must be run on the physical Turtlebot3.


Class Exercise #1: Turtlebot3 Spinning in Circles - in Simulation

In this exercise, you will recreate the spin in circles exercise from Lab A in the Gazebo simulator.

Starting the Gazebo Simulator

Bring up an empty world in the Gazebo simulator. Run:

$ roscore
and, in a second terminal, run:
$ roslaunch turtlebot3_gazebo turtlebot3_empty_world.launch

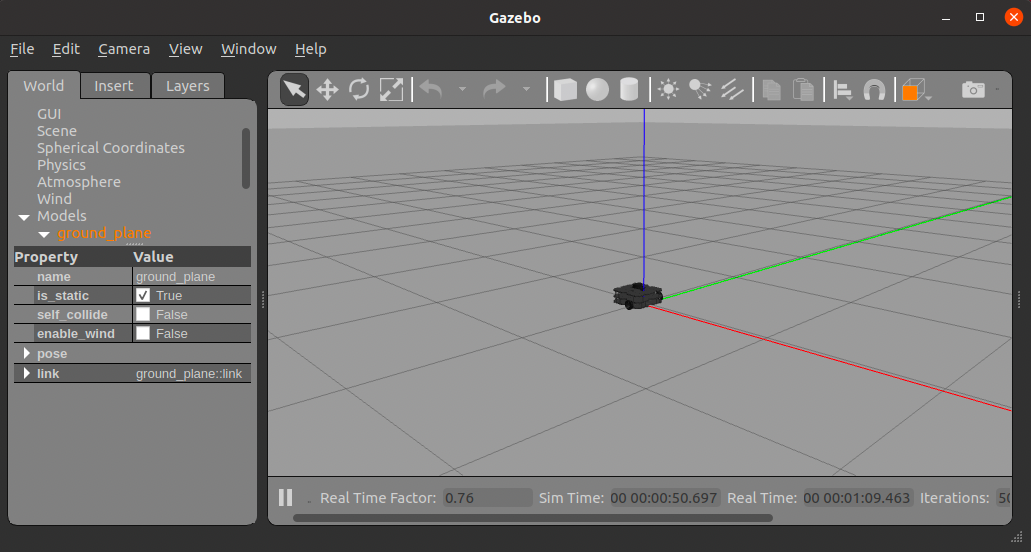

You should now see a virtual Turtlebot3 in an empty room, as pictured below.

empty Gazebo world
Note: You can launch the robot in many pre-built simulated worlds. To see a list of worlds, type in
$ roslaunch turtlebot3_gazebo turtlebot3_

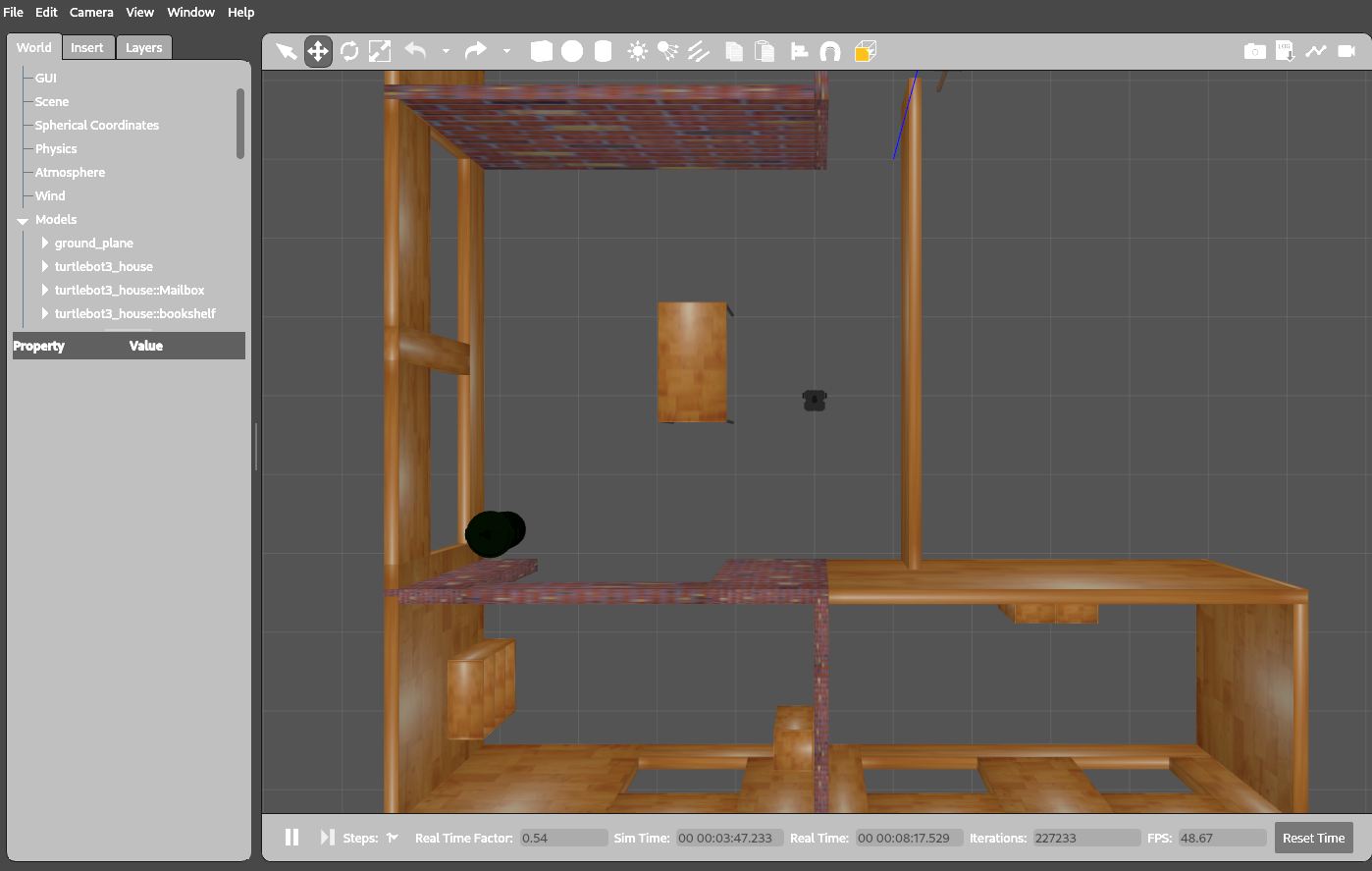

and double tap tab, which should offer you a list of possible launch files that will load different simulated worlds. For instance, if we use the turtlebot3_gazebo_house.launch launch file, you will some terminal output and a visualization like the following will pop up.
Screenshot of a turtlebot3 waffle within house. Includes gazebo interface.

Now run:

$ rostopic list
You should see all of the same ROS topics listed here that you would see after running bringup on the physical Turtlebot3.

Run Your Spin in Circles Code

Now, let's get that simulated turtlebot moving! You'll run the same spin in circles code you developed in lab A:

$ rosrun lab_a_spin_circles spin_in_circles.py

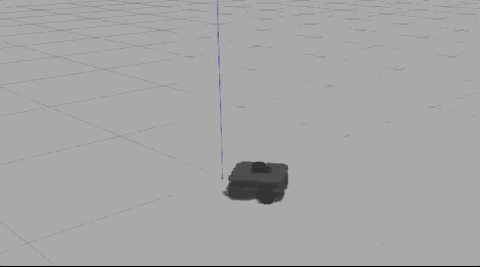

You should see the turtlebot spinning in circles now!

spin circles

As you can see here, that aren't too many differences between running your code on the simulated versus physical turtlebot:

We'll get more into the details of the ROS launch file contents in the next exercise.


Class Exercise #2: Turtlebot3 Stopping in Front of a Wall in a Custom Gazebo World

In this exercise, you will recreate the stop in front of a wall exercise from Lab A in the Gazebo simulator. This will involve building a new Gazebo world, saving it, loading it from a launch file, and running your code to have the robot move to and stop in front of a wall.

Setup

To start out today's class exercise, we'll create a new ROS package:

$ cd ~/catkin_ws/src/intro_robo
$ catkin_create_pkg class_meeting_02_custom_gazebo_world rospy std_msgs geometry_msgs sensor_msgs
$ cd ~/catkin_ws && catkin_make
$ source devel/setup.bash

Just to keep everything organized, we'll want to create directories called launch and worlds within the class_meeting_02_custom_gazebo_world directory:

~/catkin_ws/src/intro_robo/class_meeting_02_custom_gazebo_world/launch
~/catkin_ws/src/intro_robo/class_meeting_02_custom_gazebo_world/worlds

Building & Saving a New Gazebo World

Your first objective is to build a new Gazebo world. We'll use the building editor to create an enclosed room (that's the only constraint we'll ask you to follow) - anything else you want to add is up to you!

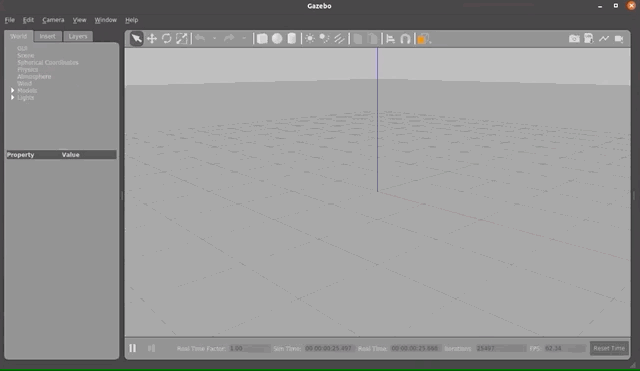

Please start up Gazebo (run gazebo in a new terminal) and utilize the building editor (here's a helpful page detailing how to use the building editor) to build your own custom Gazebo world. You can see what using the building editor should look like in the gif below.

Gazebo building editor

Once you've finished creating your enclosed room (in whatever shape and texture you like):

  1. Save your enclosed room model by clicking on File/Save (you can name it whatever you like)
  2. Exit the building editor - File/Exit Building Editor
  3. Save your Gazebo world by clicking on File/Save World As. You can name it whatever you like as long as:
    • You don't include any whitespaces in your world filename
    • You use the .world file extension
    • You put it within the ~/catkin_ws/src/intro_robo/class_meeting_02_custom_gazebo_world/worlds directory
  4. Exit Gazebo (Ctrl+C in the terminal where you ran gazebo)

Incorporating Your New Gazebo World into a New ROS Lauchfile

What we want to do next is start up a world file that has our Turtlebot3 within it, so we can run our stop_at_wall.py code. We'll do this by building a roslaunch file. roslaunch is a tool that easily enables you to launch multiple ROS nodes from the same terminal and also set various parameters.

Copy and paste the following code and put it in a file named turtlebot3_in_enclosed_room.launch within the ~/catkin_ws/src/intro_robo/class_meeting_02_custom_gazebo_world/launch directory. The one edit you'll want to make to this file is replacing your_gazebo_world_name.world with the name of the world file you saved in the last step.

<launch>
      <arg name="model" default="$(env TURTLEBOT3_MODEL)" doc="model type [burger, waffle, waffle_pi]"/>
      <arg name="x_pos" default="0.0"/>
      <arg name="y_pos" default="0.0"/>
      <arg name="z_pos" default="0.0"/>

      <include file="$(find gazebo_ros)/launch/empty_world.launch">
        <arg name="world_name" value="$(find class_meeting_02_custom_gazebo_world)/worlds/your_gazebo_world_name.world"/>
        <arg name="paused" value="false"/>
        <arg name="use_sim_time" value="true"/>
        <arg name="gui" value="true"/>
        <arg name="headless" value="false"/>
        <arg name="debug" value="false"/>
      </include>

      <param name="robot_description" command="$(find xacro)/xacro --inorder $(find turtlebot3_description)/urdf/turtlebot3_$(arg model).urdf.xacro"/>

      <node pkg="gazebo_ros" type="spawn_model" name="spawn_urdf" args="-urdf -model turtlebot3_$(arg model) -x $(arg x_pos) -y $(arg y_pos) -z $(arg z_pos) -param robot_description"/>

    </launch>

Now we'll go through each part of this roslaunch file to understand what's going on:

Note: Let's say that you write a Python script my_ros_node.py within the class_meeting_02_custom_gazebo_world ROS package and you want to add it to your launchfile. You would add the following line to your launchfile:
<node pkg="class_meeting_02_custom_gazebo_world" type="my_ros_node" name="my_ros_node_1"/>
While the pkg and type fields are specific to the ROS package and Python script you want to run, the name field can be anything you want (as long as no other ROS node running on the same network has the same name).

Now after all that, run your turtlebot3_in_enclosed_room.launch ROS launch file:

roslaunch class_meeting_02_custom_gazebo_world turtlebot3_in_enclosed_room.launch

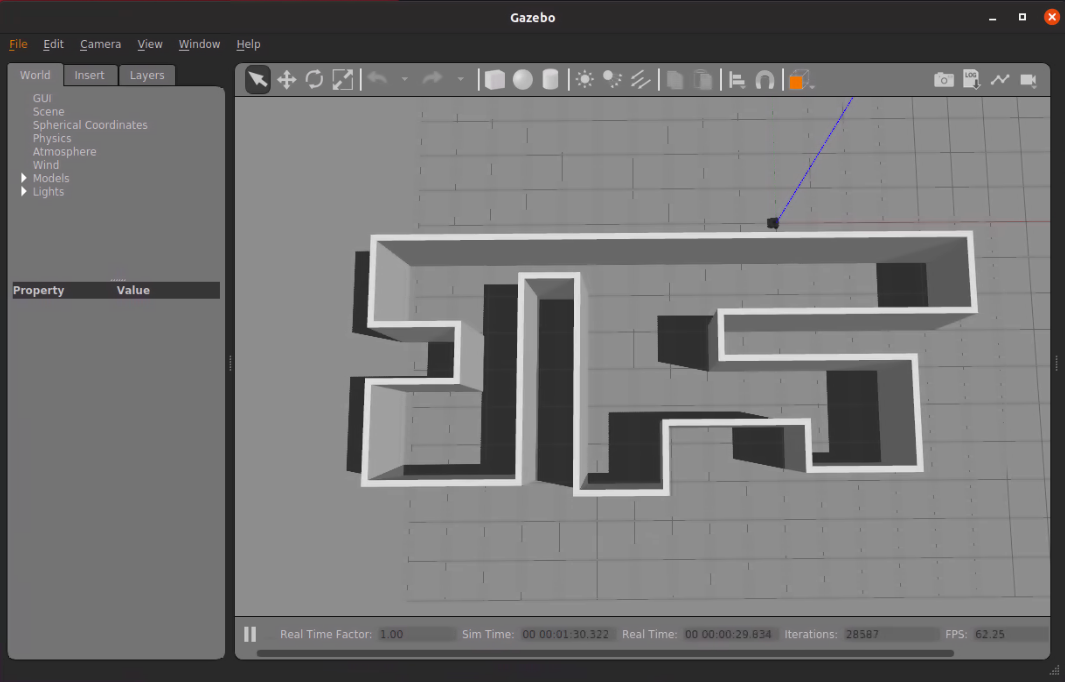

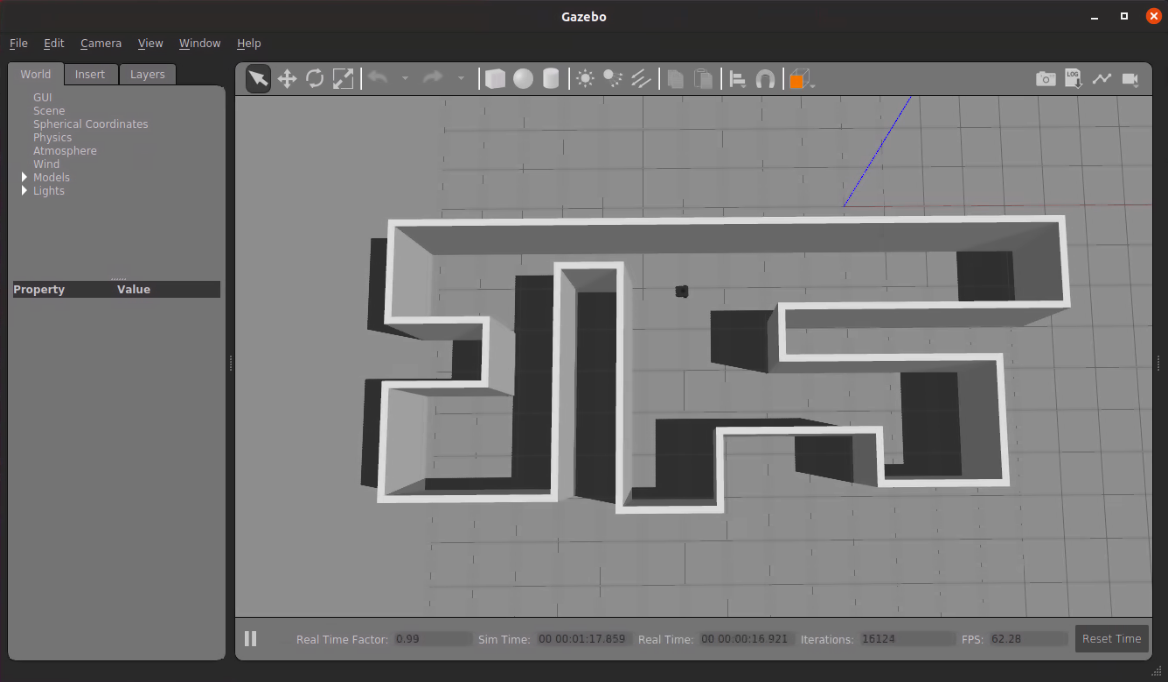

Your turtlebot should now be located within the enclosed room you made within the Gazebo simulator.

Running Your Stop at Wall Code

Now that you have your turtlebot on and running in your enclosed Gazebo room, let's run your stop_at_wall.py code. You can either run:

$ rosrun lab_a_stop_at_wall stop_at_wall.py
or add a line to your turtlebot3_in_enclosed_room.launch file, where the:
<node pkg="my_ros_package" type="my_ros_node" name="my_ros_node_1"/>

Depending on how you implemented your algorithm, you may find that the simulated robot does not exhibit the same behavior as the physical one. Unlike the physical robot, which reports ranges where nothing is detected as having distances of 0, the simulated robot will instead report ranges of infinity. This is just one example of how running your code on in Gazebo can produce different results, so it's usually a good idea to make your algorithm robust to both platforms.

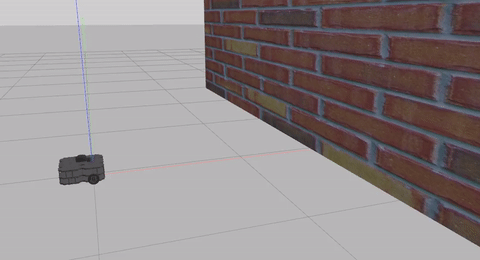

Once you've taken the new LiDAR measurements into account, you should now see your robot stop in front of one of the walls in your enclosed room.

stop at wall

Once you've finished getting your simulated turtlebot to spin in circles and stop in front of a wall in your Gazebo world with an enclosed room, you are free to either:
