Q-Learning Project


Project Material

Objectives

Your goal in this project is to implement a Q-Learning algorithm to give your robot the ability to learn how to organize items in its environment using reinforcement learning. This project will also involve components of both 1) perception - to detect the items to organize and the locations for drop-off and 2) control - to make the robot arm pick up the items and then navigate to the locations where they are to be dropped off. Like before, If you have any questions about this project or find yourself getting stuck, please post on the course Slack or send a Slack DM to the teaching team. Even if you don't find yourself hitting roadblocks, feel free to share with your peers what's working well for you.

Learning Goals

  • Continue gaining experience with ROS and robot programming
  • Gain experience with robot perception using the robot's RGB camera to identify objects and drop-off locations
  • Learn about robot manipulation through programming a multiple degree-of-freedom robot arm
  • Gain experience and intuition with reinforcement learning through a hands-on implementation of the Q-Learning algorithm

    • Teaming & Logistics

    You are expected to work with 1 other student for this project, who is different than your particle filter project partner. If you strongly prefer working by yourself, please reach out to the teaching team to discuss your individual case. A team of 3 will only be allowed if there is an odd number of students. Your team will submit your code and writeup together (in 1 Github repo).

    If you are looking for a partner, send a Slack message in the channel #find-project-partner.

    For questions please post them in the #q-learning-project channel.

    Deliverables

    Like last project, you'll submit this project using Github Classroom (both the code and the writeup). Both partners will contribute to the same github repo.

    Implementation Plan

    Please put your implementation plan within your README.md file. Your implementation plan should contain the following:

    Writeup

    Modify the README.md file as your writeup for this project. Please add pictures, Youtube videos, and/or embedded animated gifs to showcase and describe your work. Your writeup should contain the sections listed below. For the Q-Matrix intermediate deliverable, you should have the (1) objectives description, (2) high-level description, and (3) Q-learning algorithm description complete. All other sections will be due when the entire Q-learning project is due.

  • Robot perception description: Describe how you accomplished each of the following components of the perception elements of this project in 1-3 sentences, any online sources of information/code that helped you to recognize the objects, and also describe what functions / sections of the code executed each of these components (1-3 sentences per function / portion of code):
  • Robot manipulation and movement: Describe how you accomplished each of the following components of the robot manipulation and movement elements of this project in 1-3 sentences, and also describe what functions / sections of the code executed each of these components (1-3 sentences per function / portion of code):
  • Challenges (1 paragraph): Describe the challenges you faced and how you overcame them.
  • Future work (1 paragraph): If you had more time, how would you improve your implementation?
  • Takeaways (at least 2 bullet points with 2-3 sentences per bullet point): What are your key takeaways from this project that would help you/others in future robot programming assignments working in pairs? For each takeaway, provide a few sentences of elaboration.

    • Code

    The code that you develop for this project should be in new Python ROS nodes that you create within the scripts folder and the two empty training.launch action.launch launch files within the launch folder. Besides the /scripts/q_learning.py file, DO NOT EDIT ANY OTHER SCRIPTS OR MESSAGE FILES WE PROVIDE IN THE STARTER GIT REPO (e.g., scripts/reset_world.py, scripts/phantom_robot_movement.py, any of the custom message files in the /msg directory). If you wish to create additional launch files or additional custom ROS messages, you're welcome to do that. We just ask that you don't edit the launch files, ROS nodes, and custom messages that we've provided in the starter code.

    training.launch should have node(s) that:

    1. Run virtual_reset_world.py
    2. Run any scripts you've written to train and save the matrix e.g. q_learning.py

    action.launch should have node(s) that:

    1. Run any scripts you've written to load the saved QMatrix, and dispatch actions as needed to put the right colored objects to each tag
    2. Run any scripts you've written to receive dispatched actions and carry them out e.g. tag perception, colored object pickup etc.
    Note: To learn more about launch files, we recommend checking out this Roslaunch tips for larger projects tutorial and this roslaunch XML page. You could also look at the material discussed in class meeting 02.

    gif or Embedded Video

    In your writeup, include a gif or embedded video (e.g., mp4) of your robot successfully executing the task once your Q-matrix has converged.

    rosbag

    We will not ask you to record a rosbag for this project.

    Partner Contributions Survey

    The final deliverable is ensuring that each team member completes the Partner Contributions Google Survey. The purpose of this survey is to accurately capture the contributions of each partner to your combined q-learning project deliverables.

    Grading

    The Partile Filter Project will be graded as follows:


    Deadlines & Submission

    Submission

    As was true with the prior projects, we will consider your latest commit before 11:00 AM CST as your submission for each deadline. If you want to use any of your flex late hours for this assignment, please send a group DM on Slack to all teaching stuff (so we know to clone your code at the appropriate commit for grading).


    Your Objective

    Your goal in this project is to computationally determine what actions the robot should take in order to achieve the goal state (where each colored object is placed in front of the correct AR tag) using reinforcement learning. Conceptually, your program will be in either of two phases:

    1. Training: During this phase, you will be ONLY training your Q-matrix via reinforcement learning. This phase will stop once you have determined your Q-matrix has converged.
    2. Action: In this phase, you will use your converged Q-matrix to guide the robot towards the goal state. Your robot will have to pick up, move, and place each colored item in accordance with the learned goal state.

    Once complete, your project could look like the following:

    Full demo of q-learning actions

    Running Your Code

    You will run your code for the training and action phases of the project in these steps:

    1. Launch training.launch. This should launch your training nodes along with virtual_reset_world.py and save a converged Q-matrix into a file. Make sure to let the user running your code know once your matrix has converged (e.g., print statement). Once the Q-matrix has been saved in to a file, stop this command by pressing Ctrl-C.
    2. Turn on a turtlebot and run bringup and bringup_cam.
    3. Launch action.launch. This should launch ROS nodes that read in the saved Q-matrix and execute the robot action commands to pick up the colored objects and place them in front of the AR tags

    Using the Gazebo Simulator

    If you want to work in Gazebo, instead of step #2 above, launch turtlebot3_intro_robo_manipulation.launch. You should see the world pictured below. Our Turtlebot3 is now equipped with an OpenMANIPULATOR arm.

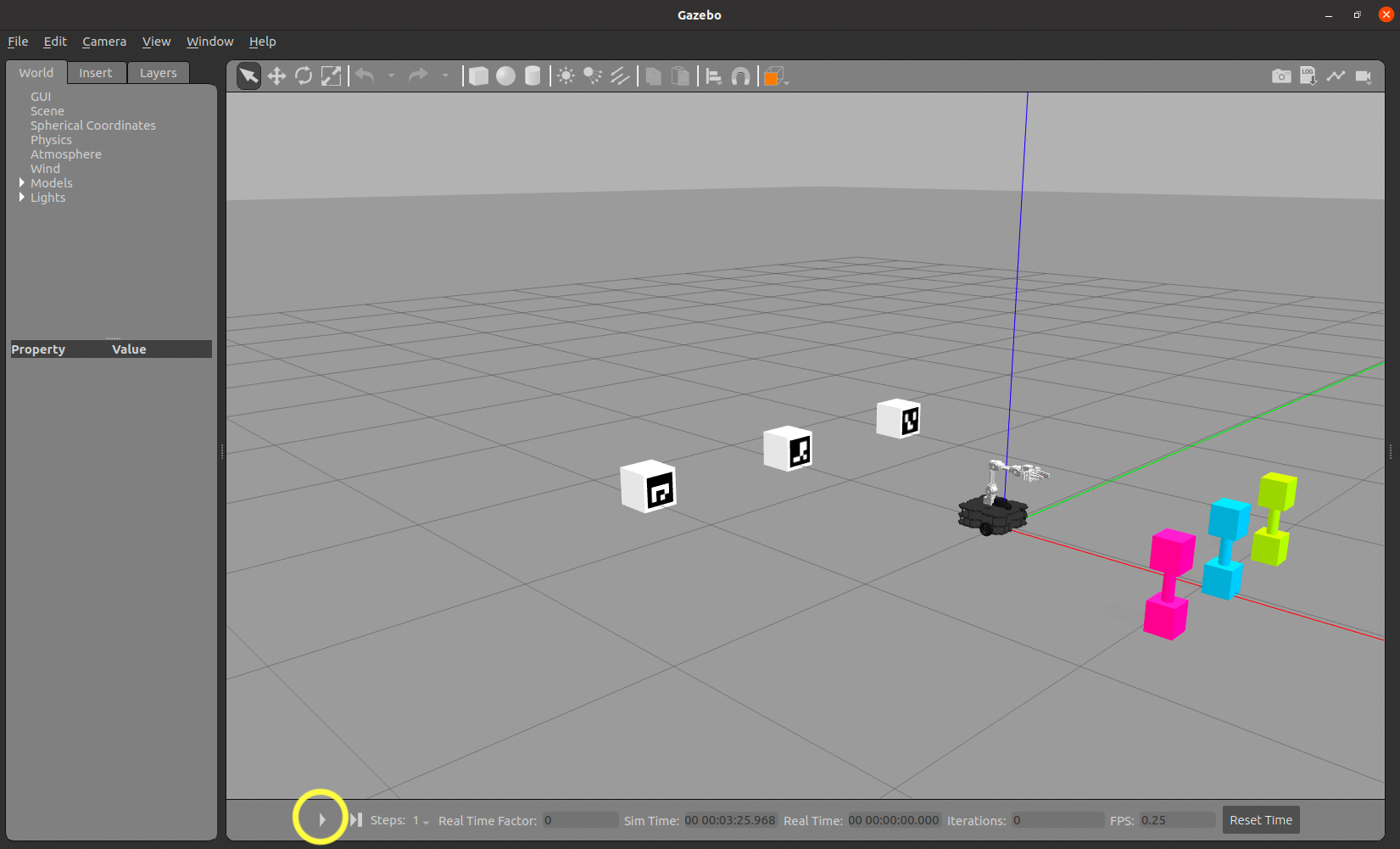

    Gazebo world for Q-learning project

    One important feature to make you aware of is that this Gazebo world file is launched with the parameter paused set to true (turtlebot3_intro_robo_manipulation.launch lines 4 and 12). Whenever you want to start running, you'll need to press the play button the bottom left hand corner of your Gazebo window (circled in yellow in the picture above).


    Training Your Robot with Q-Learning

    As we mentioned above, your goal in this project is to computationally determine what actions the robot should take in order to achieve the goal state (where each colored object is placed in front of the correct AR tag) using reinforcement learning, and specifically, Q-learning. You will implement your Q-learning algorithm in new ROS node(s) that you'll compose in new Python file(s) within the /scripts directory. Once you have all of your appropriate nodes working, fill in the training.launch file so that it launches all of your nodes and trains the Q-matrix with one roslaunch command. Your Q-learning algorithm should proceed as follows:


    Q-Learning Algorithm

    \(\textrm{Algorithm Q_Learning}:\)
    \( \qquad \textrm{initialize} \: Q \)
    \( \qquad t = 0 \)
    \( \qquad \textrm{while} \: Q \: \textrm{has not converged:} \)
    \( \qquad \qquad \textrm{select} \: a_t \: \textrm{at random} \)
    \( \qquad \qquad \textrm{perform} \: a_t \)
    \( \qquad \qquad \textrm{receive} \: r_t \)
    \( \qquad \qquad Q(s_t, a_t) \leftarrow Q(s_t, a_t) + \alpha \cdot \Big( r_t + \gamma \cdot \: \textrm{max}_a Q(s_{t+1}, a) - Q(s_t, a_t) \Big)\)
    \( \qquad \qquad t = t + 1\)

    Where:


    ROS Topics & Messages

    You will need to publish and subscribe to several ROS topics to complete your Q-learning task:

    ROS Topic ROS msg Type Notes
    /q_learning/reward q_learning/QLearningReward You will subscribe to this topic to receive from the environment the reward after each action you take.
    /q_learning/robot_action q_learning/RobotMoveObjectToTag Every time you want to execute an action, publish a message to this topic (this is the same topic you'll be subscribing to in the node you write to have your robot execute the actions).

    Setting Up the Q-matrix and the Action Matrix

    For this project, we will represent \(Q\) as a matrix, where the rows correspond with the possible world states \(s_t\) and the columns represent actions the robot can take \(a_t\). The actions that the robot can possibly take is available through self.actions in q_learning.py of the starter code. It is organized as follows:

    action number (column) move object to tag ID
    0 pink 1
    1 pink 2
    2 pink 3
    3 green 1
    4 green 2
    5 green 3
    6 blue 1
    7 blue 2
    8 blue 3

    There are 64 total states for the system to be in, which is also available to you in self.states within q_learning.py:

    state number (row) pink object location green object location blue object location
    0 origin origin origin
    1 tag 1 origin origin
    2 tag 2 origin origin
    3 tag 3 origin origin
    4 origin tag 1 origin
    5 tag 1 tag 1 origin
    6 tag 2 tag 1 origin
    7 tag 3 tag 1 origin
    8 origin tag 2 origin
    9 tag 1 tag 2 origin
    10 tag 2 tag 2 origin
    11 tag 3 tag 2 origin
    12 origin tag 3 origin
    13 tag 1 tag 3 origin
    14 tag 2 tag 3 origin
    15 tag 3 tag 3 origin
    ... ... ... ...
    63 tag 3 tag 3 tag 3

    Where

    In addition to a Q-matrix, we have provided you with an action matrix, available through self.action_matrix in q_learning.py. The rows of the action matrix represents a starting state \((s_t)\) and the columns of the action matrix represents the next state \((s_{t+1})\). The matrix is set up such that \(\textrm{action_matrix}[s_t][s_{t+1}] = a_t \). Let's examine the example of \(\textrm{action_matrix}[0][12] = 5 \). In this case \(s_t = 0\), where all three colored objects are at the origin, and \(s_{t+1} = 12\), where the pink and blue objects are at the origin and the green object is at tag 3, and \(a_t = 5\) which is the action corresponding with the robot taking the green object to tag 3.

    All transitions from \(s_t\) to \(s_{t+1}\) that are impossible or invalid are assigned a value of -1. For example, since the robot can only carry one colored object at a time, the transition from state 0 to 6 is impossible. Additionally, only one object can sit in front of one AR tag at a time, so any transition to state 5 (where both the pink and green objects are at tag 1) is also impossible and is assigned the value -1.

    The value of having this action matrix comes into play when we're executing the \( \textrm{select} \: a_t \: \textrm{at random} \) step of the Q-learning algorithm. In order to select a random action, we take our current state \((s_t)\), and look up the row corresponding with that state in the action matrix. All the values that are not -1 represent valid actions that the robot can take from state \(s_t\). You can then pick one of these at random.


    Q-Matrix Convergence

    As highlighted in the Q-learning algorithm, you will iterate through the while loop, updating your Q-matrix, until your Q-matrix has converged. What we mean by "convergence" in this context is that your Q-matrix has reached its final form and no more updates or changes will occur to it. It's up to you to determine when your Q-matrix has converged.


    Iterating through the Q-Learning Algorithm

    In order to reach convergence of your Q-matrix, you're going to have to run many iterations of having the robot place the colored objects in front of the AR tags and debug your code frequently. To make debugging easier, we've created two different nodes to help you with that:

    The phantom robot movement ROS node subscribes to robot actions given on the /q_learning/robot_action ROS topic, so as long as you're sending robot actions on this topic and have the phantom robot movement node running, you should see something like what's pictured in the following gif.

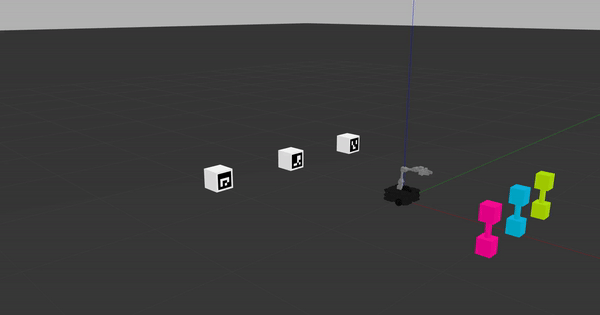

    using phantom robot movement to do q-learning

    This phantom robot movement node is designed to help you debug your learning code. Once you have ensured that your code works properly, you'll need to shut down the phantom robot movement ROS node and use virtual_reset_world.py that will let you quickly iterate through the Q-learning algorithm until you reach convergence.

    The virtual reset world works by responding to robot actions given on the /q_learning/robot_action ROS topic and publishes rewards to the /q_learning/reward topic based on the actions it receives without manipulating the gazebo world, hence it is faster. If you are operating it correctly, you should see an output like the following:

    robot_object: "blue"
tag_id: 3
Published reward:  0
robot_object: "pink"
tag_id: 2
Published reward:  0
robot_object: "green"
tag_id: 1
Published reward:  0
reseting the world
robot_object: "blue"
tag_id: 3
Published reward:  0
robot_object: "pink"
tag_id: 1
Published reward:  0
robot_object: "green"
tag_id: 2
Published reward:  0
reseting the world

    Tips:


    Saving the Q-Matrix & Communicating It to the Next Phase

    Training the Q-matrix will often take some time and communicating this matrix to the next phase of operations could lead to issues. Hence, we ask you to save your Q-matrix in an appropriate file (e.g. csv) once it has converged. The action phase of this project will need to read/load the trained Q-matrix via this file.


    Robot Actions: Picking Up Colored Objects and Placing them in Front of AR Tags

    One key component to this project is building a ROS node that can execute actions published to the /q_learning/robot_action ROS topic (with a custom message type of q_learning/RobotMoveObjectToTag). When your ROS node receives a message on this topic, it should:

    1. Move to and pick up the colored object specified by the robot_object attribute of the q_learning/RobotMoveObjectToTag message
    2. Carry the colored object to the tag specified by the tag_id attribute of the q_learning/RobotMoveObjectToTag message, and
    3. Put the colored object down.

    Write your code for this node in new Python file(s) within the /scripts directory. Once you have all of your appropriate nodes working, fill in the action.launch file so that it launches all of your nodes and executes appropriate actions based on the learned Q-Matrix. The following subsections will give you some more details and helpful tips on the perception and robot manipulator control components to programming these robot actions.


    Selecting Robot Actions that Maximize Future Reward

    Once your Q-matrix converges and has been saved to a .csv file, you now have a Q-matrix that contains information about future expected reward for robot actions. You can now use the Q-matrix to make decisions about actions to take that will lead to the highest expected future reward. To do this, load your Q-matrix, take your current state \(s_t\) and look up the corresponding row in your Q-matrix. In this row, find the action (column) that corresponds with the highest Q-value. This is the action that will lead to the highest expected future reward.


    Perception

    In order to pick up the colored objects and carry them to the AR tags, your robot will need to be able to perceive:

    At the end of each iteration of the Q-learning algorithm, the tags and colored objects will randomly switch their order. So your robot will need to be able to discern the difference, for example, between the green and pink objects as well as between tag 1 and tag 3.

    Note: Remember to run the following command when working with the physical turtlebot to work with the decompressed images
    $ rosrun image_transport republish compressed in:=raspicam_node/image raw out:=camera/rgb/image_raw

    To launch the Turtlebot3 RViz window, run:

    $ roslaunch turtlebot3_gazebo turtlebot3_gazebo_rviz.launch

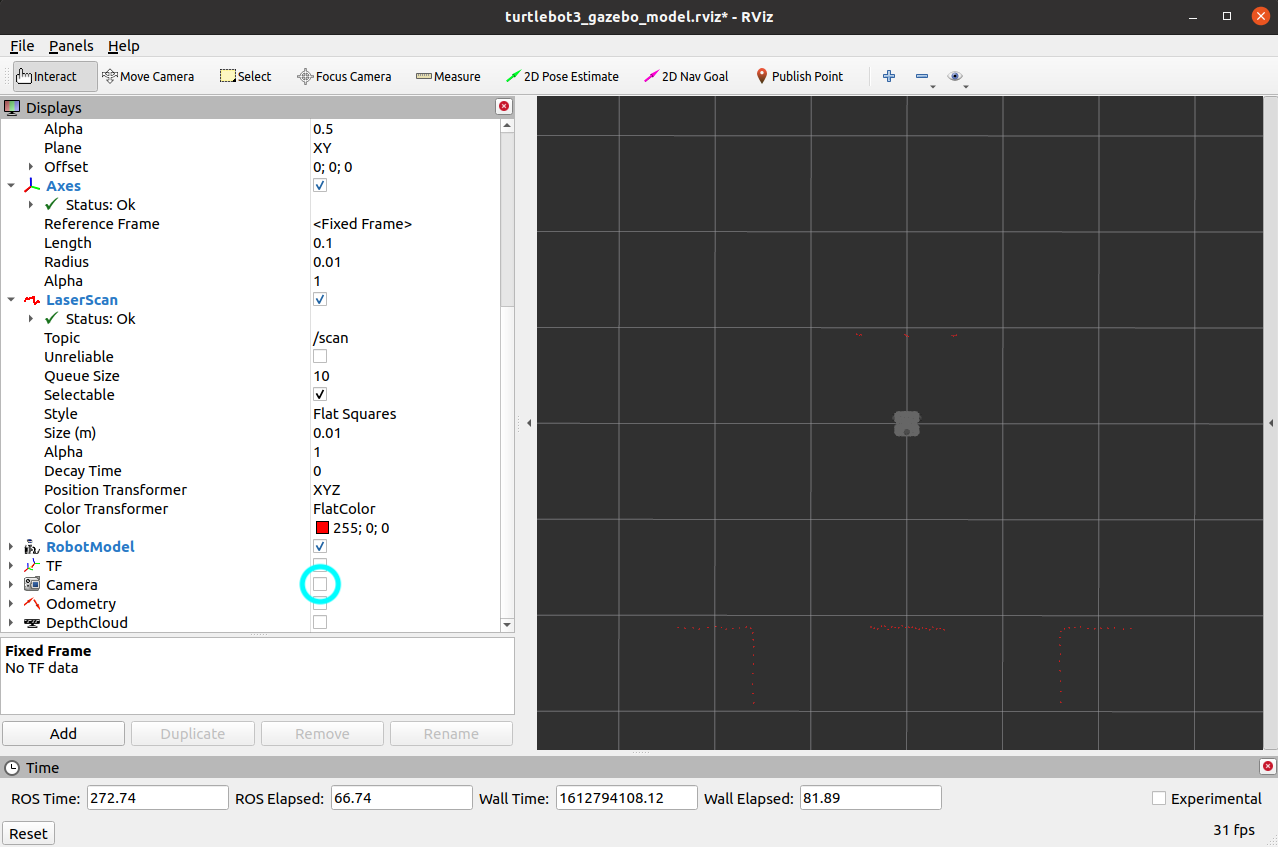

    This should bring up an RViz window like the one pictured below.

    rviz

    One important thing to note is that you can visualize what the robot sees through its RGB camera by checking the check box next to "Camera" (see the image above). Once you do, you can see "through the eyes of the robot".

    Tips:


    AR Tag Recognition

    The AR tags you will be identifying in this exercise come from the ArUco library, which is implemented in OpenCV as its aruco module. ArUco markers come in sets known as dictionaries, which are defined by the size of the markers and the number of markers in the set. In particular, the three tags we are using are tags 1, 2, and 3 from the dictionary DICT_4X4_50 (a set of 50 4x4 markers).

    To use the cv2.aruco module, you need to first install it via

    $ pip install opencv-contrib-python
    Note: If you don't yet have pip installed, you can install pip with:
    $ sudo apt install python3-pip

    Next, you need to load the dictionary in your Python script.

    import cv2

# load DICT_4X4_50
aruco_dict = cv2.aruco.Dictionary_get(cv2.aruco.DICT_4X4_50)

.
.
.

# search for tags from DICT_4X4_50 in a GRAYSCALE image
corners, ids, rejected_points = cv2.aruco.detectMarkers(grayscale_image, aruco_dict)

# corners is a 4D array of shape (n, 1, 4, 2), where n is the number of tags detected
# each entry is a set of four (x, y) pixel coordinates corresponding to the
# location of a tag's corners in the image

# ids is a 2D array array of shape (n, 1)
# each entry is the id of a detected tag in the same order as in corners

# rejected_points contains points from detected tags that don't have codes matching the dictionary

    For more information, please visit the documentation. Although the tutorial is written for C++, you can find headers for the equivalent Python functions under their respective function documentations.

    Tips:


    Robot Manipulator Control

    In order to enable your robot to pick up the colored objects (dumbbells in Gazebo, paper towel tubes in real-life), you'll need to get familiar with programming the Turtlebot3's OpenMANIPULATOR arm. Here's a list of resources to help you get up and running:

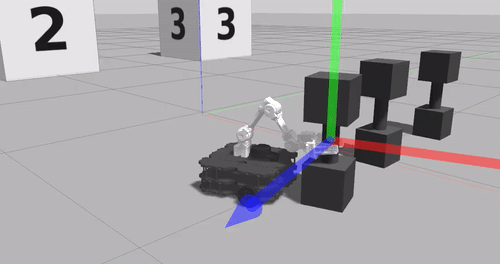

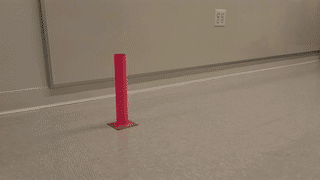

    The following gif on the left shows an example of the Turtlebot3 OpenMANIPULATOR arm picking up a dumbbell in Gazebo. The gif on the right shows an example of the real-world Turtlebot3 with OpenMANIPULATOR moving to and picking up a colored tube.

    robot picking up block
    robot picking up tube

    Tips:


    Acknowledgments

    The design of this course project was influenced by Brian Scassellati and his Intelligent Robotics course taught at Yale University. Also, I want to thank my sister, Rachel Strohkorb, for creating the custom dumbbell model for our use in the Gazebo simulator.
