cs237::Attachment Class Reference

Frame-buffer attachments for off-screen rendering support. More...

#include <attachment.hpp>

Inheritance diagram for cs237::Attachment:

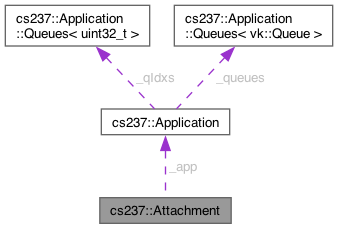

Collaboration diagram for cs237::Attachment:

Public Member Functions
	Attachment (cs237::Application *app, uint32_t wid, uint32_t ht, vk::Format fmt, vk::ImageUsageFlags usage)
	Construct a frame-buffer attachment.
	~Attachment ()
	destructor
uint32_t	width () const
	get the width of the buffer
uint32_t	height () const
	get the height of the buffer
vk::Format	format () const
	get the pixel format
vk::ImageView	imageView () const
	return the image view for the attachment

Protected Attributes
cs237::Application *	_app
	the owning application
vk::Image	_img
	Vulkan image to hold the attachment.
vk::DeviceMemory	_mem
	device memory for the attachment image
vk::ImageView	_view
	image view for attachment image
uint32_t	_wid
	attachment width
uint32_t	_ht
	attachment height
vk::Format	_fmt
	the pixel format

Detailed Description

Frame-buffer attachments for off-screen rendering support.

Constructor & Destructor Documentation

Attachment()

cs237::Attachment::Attachment	(	cs237::Application *	app,
		uint32_t	wid,
		uint32_t	ht,
		vk::Format	fmt,
		vk::ImageUsageFlags	usage )

Construct a frame-buffer attachment.

Parameters

app	the owning application
wid	the width of the attachment
ht	the height of the attachment
fmt	the pixel format of the attachment
usage	the way that this attachment is going to be used

~Attachment()

cs237::Attachment::~Attachment

(

)

destructor

Member Function Documentation

format()

vk::Format cs237::Attachment::format ( ) const

inline

get the pixel format

height()

uint32_t cs237::Attachment::height ( ) const

inline

get the height of the buffer

imageView()

vk::ImageView cs237::Attachment::imageView ( ) const

inline

return the image view for the attachment

width()

uint32_t cs237::Attachment::width ( ) const

inline

get the width of the buffer

Member Data Documentation

_app

cs237::Application* cs237::Attachment::_app

protected

the owning application

_fmt

vk::Format cs237::Attachment::_fmt

protected

the pixel format

_ht

uint32_t cs237::Attachment::_ht

protected

attachment height

_img

vk::Image cs237::Attachment::_img

protected

Vulkan image to hold the attachment.

_mem

vk::DeviceMemory cs237::Attachment::_mem

protected

device memory for the attachment image

_view

vk::ImageView cs237::Attachment::_view

protected

image view for attachment image

_wid

uint32_t cs237::Attachment::_wid

protected

attachment width

---

The documentation for this class was generated from the following file:

• /Users/jhr/Classes/23700/f2024/cs237-upstream/cs237-library/include/cs237/attachment.hpp
