abstract base class for simple GLFW windows used to view buffers, etc. More...

#include <window.hpp>

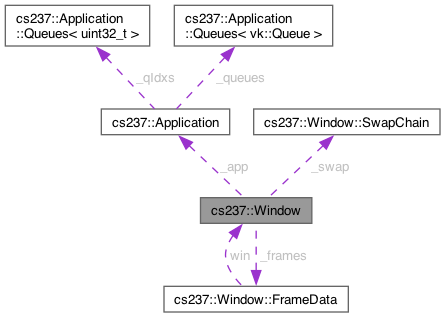

Collaboration diagram for cs237::Window:

[legend]

Classes
struct	DepthStencilBuffer
	information about the optional depth/stencil buffers for the window More...

struct	FrameData
	A container for the per-frame rendering state. More...

struct	SwapChain
	the collected information about the swap-chain for a window More...

struct	SwapChainDetails
	information about swap-chain support More...

Public Member Functions
virtual	~Window ()
	destructor: it destroys the underlying GLFW window

void	initialize ()

Application *	app ()
	return the application pointer

vk::Device	device () const
	return the logical device for this window

vk::Queue	graphicsQ () const
	the graphics queue

vk::Queue	presentationQ () const
	the presentation queue

vk::Queue	computeQ () const
	the compute queue

void	refresh ()

void	hide ()
	Hide the window.

void	show ()
	Show the window (a no-op if it is already visible)

virtual void	draw ()=0

virtual void	reshape (int wid, int ht)

virtual void	iconify (bool iconified)
	method invoked on Iconify events.

bool	windowShouldClose ()
	get the value of the "close" flag for the window

virtual void	key (int key, int scancode, int action, int mods)

virtual void	cursorPos (double xpos, double ypos)

virtual void	cursorEnter (bool entered)

virtual void	mouseButton (int button, int action, int mods)

virtual void	scroll (double xoffset, double yoffset)

void	enableKeyEvent (bool enable)

void	setCursorMode (int mode)

void	enableCursorPosEvent (bool enable)

void	enableCursorEnterEvent (bool enable)

void	enableMouseButtonEvent (bool enable)

void	enableScrollEvent (bool enable)

int	width () const
	the width of the window

int	height () const
	the height of the window

Protected Member Functions
	Window (Application *app, CreateWindowInfo const &info)
	the Window base-class constructor

virtual void	_init ()
	subclasses can override this method to handle any additional initialization that needs to be run after the window object is constructed.

SwapChainDetails	_getSwapChainDetails ()
	Get the swap-chain details for a physical device.

void	_createSwapChain (bool depth, bool stencil)
	Create the swap chain for this window; this initializes the _swap instance variable.

void	_recreateSwapChain ()
	Recreate the swap chain for this window; this redefines the _swap instance variable and is used when some aspect of the presentation surface changes.

virtual FrameData *	_allocFrameData (Window *w)
	virtual function for allocating a `FrameData` object. Subclasses of the `Window` class can define a subclass of `FrameData` and then override this method to allocate the subclass objects.

FrameData *	_currentFrame ()
	get a pointer to the current per-frame rendering state

FrameData *	_prevFrame ()
	get a pointer to the previous per-frame rendering state

FrameData *	_nextFrame ()
	get a pointer to the next per-frame rendering state

void	_advanceFrame ()
	advance the current frame

vk::Result	_acquireNextImage ()
	acquire the next image from the swap chain. This method has the side effect of setting the `index` of the current frame to the index of the swap-chain image that we are using.

void	_initAttachments (std::vector< vk::AttachmentDescription > &descs, std::vector< vk::AttachmentReference > &refs)
	initialize the attachment descriptors and references for the color and optional depth/stencil-buffer

uint32_t	_graphicsQIdx () const
	the graphics queue-family index

uint32_t	_presentationQIdx () const
	the presentation queue

uint32_t	_computeQIdx () const
	the compute queue index

vk::Viewport	_getViewport (bool oglView=false)
	get the natural viewport for the window

vk::Rect2D	_getScissorsRect ()
	get the scissors rectangle for this window

void	_setViewportCmd (vk::CommandBuffer cmdBuf, bool oglView=false)
	add a command to set the viewport and scissor to the whole window

void	_setViewportCmd (vk::CommandBuffer cmdBuf, int32_t x, int32_t y, int32_t wid, int32_t ht)
	add a viewport command to the command buffer; this also sets the scissor rectangle.

vk::DeviceMemory	_allocImageMemory (vk::Image img, vk::MemoryPropertyFlags props)
	A helper function for allocating and binding device memory for an image.

vk::ImageView	_createImageView (vk::Image img, vk::Format fmt, vk::ImageAspectFlags aspectFlags)
	A helper function for creating a Vulkan image view object for an image.

void	_transitionImageLayout (vk::Image img, vk::Format fmt, vk::ImageLayout oldLayout, vk::ImageLayout newLayout)
	A helper function for changing the layout of an image.

Protected Attributes
Application *	_app
	the owning application

GLFWwindow *	_win
	the underlying window

int	_wid

int	_ht
	window dimensions

bool	_isVis
	true when the window is visible

bool	_keyEnabled
	true when the Key callback is enabled

bool	_cursorPosEnabled
	true when the CursorPos callback is enabled

bool	_cursorEnterEnabled
	true when the CursorEnter callback is enabled

bool	_mouseButtonEnabled
	true when the MouseButton callback is enabled

bool	_scrollEnabled
	true when the Scroll callback is enabled

vk::SurfaceKHR	_surf
	the Vulkan surface to render to

SwapChain	_swap
	buffer-swapping information

FrameData *	_frames [kMaxFrames]
	the per-frame rendering state

uint32_t	_curFrameIdx
	index into `_frames` array for current frame data

Detailed Description

abstract base class for simple GLFW windows used to view buffers, etc.

Constructor & Destructor Documentation

◆ ~Window()

virtual cs237::Window::~Window ( )

virtual

destructor: it destroys the underlying GLFW window

◆ Window()

cs237::Window::Window	(	Application *	app,
		CreateWindowInfo const &	info )

protected

the Window base-class constructor

Parameters

app	the owning application
info	information for creating the window, such as size and title

Member Function Documentation

◆ _acquireNextImage()

vk::Result cs237::Window::_acquireNextImage ( )

protected

acquire the next image from the swap chain. This method has the side effect of setting the index of the current frame to the index of the swap-chain image that we are using.

Returns: the status of the request; Result::eSuccess for success

◆ _advanceFrame()

void cs237::Window::_advanceFrame ( )

inlineprotected

advance the current frame

◆ _allocFrameData()

virtual FrameData * cs237::Window::_allocFrameData ( Window * w )

protectedvirtual

virtual function for allocating a FrameData object. Subclasses of the Window class can define a subclass of FrameData and then override this method to allocate the subclass objects.

◆ _allocImageMemory()

vk::DeviceMemory cs237::Window::_allocImageMemory	(	vk::Image	img,
		vk::MemoryPropertyFlags	props )

inlineprotected

A helper function for allocating and binding device memory for an image.

Parameters

img	the image to allocate memory for
props	requred memory properties

Returns: the device memory that has been bound to the image

◆ _computeQIdx()

uint32_t cs237::Window::_computeQIdx ( ) const

inlineprotected

the compute queue index

This method is a wrapper to allow subclasses access to this information

◆ _createImageView()

vk::ImageView cs237::Window::_createImageView	(	vk::Image	img,
		vk::Format	fmt,
		vk::ImageAspectFlags	aspectFlags )

inlineprotected

A helper function for creating a Vulkan image view object for an image.

Parameters

img	the image on which the view is created
fmt	the format and type used to interpret image texels
aspectFlags	a bitmask specifying which aspect(s) of the image are included in the view.

Returns: the image view

◆ _createSwapChain()

void cs237::Window::_createSwapChain	(	bool	depth,
		bool	stencil )

protected

Create the swap chain for this window; this initializes the _swap instance variable.

Parameters

depth	set to true if requesting depth-buffer support
stencil	set to true if requesting stencil-buffer support

◆ _currentFrame()

FrameData * cs237::Window::_currentFrame ( )

inlineprotected

get a pointer to the current per-frame rendering state

◆ _getScissorsRect()

vk::Rect2D cs237::Window::_getScissorsRect ( )

inlineprotected

get the scissors rectangle for this window

Returns: a rectangle that covers the extent of the window

◆ _getSwapChainDetails()

SwapChainDetails cs237::Window::_getSwapChainDetails ( )

protected

Get the swap-chain details for a physical device.

◆ _getViewport()

vk::Viewport cs237::Window::_getViewport ( bool oglView = false )

inlineprotected

get the natural viewport for the window

Parameters

oglView if true then use the OpenGL convention where Y = 0 maps to the bottom of the screen and Y increases going up.

Returns: a viewport that covers the extent of the window

◆ _graphicsQIdx()

uint32_t cs237::Window::_graphicsQIdx ( ) const

inlineprotected

the graphics queue-family index

This method is a wrapper to allow subclasses access to this information

◆ _init()

virtual void cs237::Window::_init ( )

protectedvirtual

subclasses can override this method to handle any additional initialization that needs to be run after the window object is constructed.

◆ _initAttachments()

void cs237::Window::_initAttachments	(	std::vector< vk::AttachmentDescription > &	descs,
		std::vector< vk::AttachmentReference > &	refs )

protected

initialize the attachment descriptors and references for the color and optional depth/stencil-buffer

Parameters

[out]	descs	vector that will contain the attachment descriptors
[out]	refs	vector that will contain the attachment references

◆ _nextFrame()

FrameData * cs237::Window::_nextFrame ( )

inlineprotected

get a pointer to the next per-frame rendering state

◆ _presentationQIdx()

uint32_t cs237::Window::_presentationQIdx ( ) const

inlineprotected

the presentation queue

This method is a wrapper to allow subclasses access to this information

◆ _prevFrame()

FrameData * cs237::Window::_prevFrame ( )

inlineprotected

get a pointer to the previous per-frame rendering state

◆ _recreateSwapChain()

void cs237::Window::_recreateSwapChain ( )

protected

Recreate the swap chain for this window; this redefines the _swap instance variable and is used when some aspect of the presentation surface changes.

◆ _setViewportCmd() [1/2]

void cs237::Window::_setViewportCmd	(	vk::CommandBuffer	cmdBuf,
		bool	oglView = false )

inlineprotected

add a command to set the viewport and scissor to the whole window

Parameters

cmdBuf	the command buffer
oglView	if `true` then use the OpenGL convention where Y = 0 maps to the bottom of the screen and Y increases going up.

Vulkan follows the Direct3D convention of using a right-handed NDC space, which means that Y = 0 maps to the top of the screen, instead of the bottom (as in OpenGL). pass true as the second argument to use the OpenGL convention.

◆ _setViewportCmd() [2/2]

void cs237::Window::_setViewportCmd	(	vk::CommandBuffer	cmdBuf,
		int32_t	x,
		int32_t	y,
		int32_t	wid,
		int32_t	ht )

protected

add a viewport command to the command buffer; this also sets the scissor rectangle.

Parameters

cmdBuf	the command buffer
x	specifies the Y coordinate of the upper-left corner
y	specifies the X coordinate of the upper-left corner
wid	specifies the width of the viewport
ht	specifies the height of the viewport

To use the OpenGL convention of the Y axis pointing up, specify the OpenGL Y coordinate and a negative height.

◆ _transitionImageLayout()

void cs237::Window::_transitionImageLayout	(	vk::Image	img,
		vk::Format	fmt,
		vk::ImageLayout	oldLayout,
		vk::ImageLayout	newLayout )

inlineprotected

A helper function for changing the layout of an image.

Parameters

img	the image to change
fmt	the image's format
oldLayout	the current layout of `img`
newLayout	the new layout of `img`

◆ app()

Application * cs237::Window::app ( )

inline

return the application pointer

◆ computeQ()

vk::Queue cs237::Window::computeQ ( ) const

inline

the compute queue

◆ cursorEnter()

virtual void cs237::Window::cursorEnter ( bool entered )

virtual

◆ cursorPos()

virtual void cs237::Window::cursorPos	(	double	xpos,
		double	ypos )

virtual

◆ device()

vk::Device cs237::Window::device ( ) const

inline

return the logical device for this window

◆ draw()

virtual void cs237::Window::draw ( )

pure virtual

virtual draw method provided by derived classes to draw the contents of the window. It is called by Refresh.

◆ enableCursorEnterEvent()

void cs237::Window::enableCursorEnterEvent ( bool enable )

◆ enableCursorPosEvent()

void cs237::Window::enableCursorPosEvent ( bool enable )

◆ enableKeyEvent()

void cs237::Window::enableKeyEvent ( bool enable )

{ enable/disable handling of events

◆ enableMouseButtonEvent()

void cs237::Window::enableMouseButtonEvent ( bool enable )

◆ enableScrollEvent()

void cs237::Window::enableScrollEvent ( bool enable )

◆ graphicsQ()

vk::Queue cs237::Window::graphicsQ ( ) const

inline

the graphics queue

◆ height()

int cs237::Window::height ( ) const

inline

the height of the window

◆ hide()

void cs237::Window::hide ( )

inline

Hide the window.

◆ iconify()

virtual void cs237::Window::iconify ( bool iconified )

virtual

method invoked on Iconify events.

◆ initialize()

void cs237::Window::initialize ( )

method for completing the initialization of a window. This function allocates the per-frame data array and also invokes the virtual _init method to handle and sub-class specific initialization that was not handled in the constructor.

◆ key()

virtual void cs237::Window::key	(	int	key,
		int	scancode,
		int	action,
		int	mods )

virtual

{ Input handling methods; override these in the derived window classes to do something useful.

◆ mouseButton()

virtual void cs237::Window::mouseButton	(	int	button,
		int	action,
		int	mods )

virtual

◆ presentationQ()

vk::Queue cs237::Window::presentationQ ( ) const

inline

the presentation queue

◆ refresh()

void cs237::Window::refresh ( )

inline

Refresh the contents of the window. This method is also invoked on Refresh events.

◆ reshape()

virtual void cs237::Window::reshape	(	int	wid,
		int	ht )

virtual

method invoked on Reshape events.

Parameters

wid	specifies the width of the viewport
ht	specifies the height of the viewport

This method takes care of updating the cached size of the window and recreating the swap chain. Other updates, including allocating new framebuffers should be handled by overriding this method in the subclass.

◆ scroll()

virtual void cs237::Window::scroll	(	double	xoffset,
		double	yoffset )

virtual

◆ setCursorMode()

void cs237::Window::setCursorMode ( int mode )

◆ show()

void cs237::Window::show ( )

inline

Show the window (a no-op if it is already visible)

◆ width()

int cs237::Window::width ( ) const

inline

the width of the window

◆ windowShouldClose()

bool cs237::Window::windowShouldClose ( )

inline

get the value of the "close" flag for the window

Member Data Documentation

◆ _app

Application* cs237::Window::_app

protected

the owning application

◆ _curFrameIdx

uint32_t cs237::Window::_curFrameIdx

protected

index into _frames array for current frame data

◆ _cursorEnterEnabled

bool cs237::Window::_cursorEnterEnabled

protected

true when the CursorEnter callback is enabled

◆ _cursorPosEnabled

bool cs237::Window::_cursorPosEnabled

protected

true when the CursorPos callback is enabled

◆ _frames

FrameData* cs237::Window::_frames[kMaxFrames]

protected

the per-frame rendering state

◆ _ht

int cs237::Window::_ht

protected

window dimensions

◆ _isVis

bool cs237::Window::_isVis

protected

true when the window is visible

◆ _keyEnabled

bool cs237::Window::_keyEnabled

protected

true when the Key callback is enabled

◆ _mouseButtonEnabled

bool cs237::Window::_mouseButtonEnabled

protected

true when the MouseButton callback is enabled

◆ _scrollEnabled

bool cs237::Window::_scrollEnabled

protected

true when the Scroll callback is enabled

◆ _surf

vk::SurfaceKHR cs237::Window::_surf

protected

the Vulkan surface to render to

◆ _swap

SwapChain cs237::Window::_swap

protected

buffer-swapping information

◆ _wid

int cs237::Window::_wid

protected

◆ _win

GLFWwindow* cs237::Window::_win

protected

the underlying window

The documentation for this class was generated from the following file:

/Users/jhr/Classes/23700/f2024/cs237-upstream/cs237-library/include/cs237/window.hpp

Classes

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ ~Window()

◆ Window()

Member Function Documentation

◆ _acquireNextImage()

◆ _advanceFrame()

◆ _allocFrameData()

◆ _allocImageMemory()

◆ _computeQIdx()

◆ _createImageView()

◆ _createSwapChain()

◆ _currentFrame()

◆ _getScissorsRect()

◆ _getSwapChainDetails()

◆ _getViewport()

◆ _graphicsQIdx()

◆ _init()

◆ _initAttachments()

◆ _nextFrame()

◆ _presentationQIdx()

◆ _prevFrame()

◆ _recreateSwapChain()

◆ _setViewportCmd() [1/2]

◆ _setViewportCmd() [2/2]

◆ _transitionImageLayout()

◆ app()

◆ computeQ()

◆ cursorEnter()

◆ cursorPos()

◆ device()

◆ draw()

◆ enableCursorEnterEvent()

◆ enableCursorPosEvent()

◆ enableKeyEvent()

◆ enableMouseButtonEvent()

◆ enableScrollEvent()

◆ graphicsQ()

◆ height()

◆ hide()

◆ iconify()

◆ initialize()

◆ key()

◆ mouseButton()

◆ presentationQ()

◆ refresh()

◆ reshape()

◆ scroll()

◆ setCursorMode()

◆ show()

◆ width()

◆ windowShouldClose()

Member Data Documentation

◆ _app

◆ _curFrameIdx

◆ _cursorEnterEnabled

◆ _cursorPosEnabled

◆ _frames

◆ _ht

◆ _isVis

◆ _keyEnabled

◆ _mouseButtonEnabled

◆ _scrollEnabled

◆ _surf

◆ _swap

◆ _wid

◆ _win
