cs237::Window::FrameData Struct Reference

A container for the per-frame rendering state. More...

#include <window.hpp>

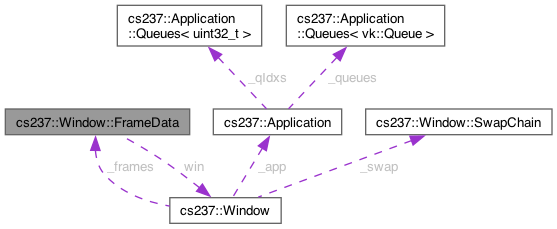

Collaboration diagram for cs237::Window::FrameData:

Public Member Functions
	FrameData (Window *win)
	FrameData ()=delete
	FrameData (FrameData &)=delete
	FrameData (FrameData const &)=delete
	FrameData (FrameData &&)=delete
virtual	~FrameData ()
	Destructor.
void	waitForFence ()
	wait for this frame's ‘inFlight’ fence
void	resetFence ()
	reset this frame's inFlight fence
void	submitDrawingCommands ()
	submit drawing commands for this frame using the main command buffer
vk::Result	present ()
	present this frame

Public Attributes
Window *	win
	the owning window
vk::CommandBuffer	cmdBuf
vk::Semaphore	imageAvail
vk::Semaphore	finished
vk::Fence	inFlight
uint32_t	index

Detailed Description

A container for the per-frame rendering state.

There is one of these objects per frame. Subclasses of the Window class may want to extend this structure with additional information so the window class defines a virtual function for allocating FrameData objects.

Constructor & Destructor Documentation

FrameData() [1/5]

cs237::Window::FrameData::FrameData

(

Window *

win

)

Constructor

Parameters

win	the owning window

This constructor initializes the win and synchronization components.

FrameData() [2/5]

cs237::Window::FrameData::FrameData ( )

delete

FrameData() [3/5]

cs237::Window::FrameData::FrameData ( FrameData & )

delete

FrameData() [4/5]

cs237::Window::FrameData::FrameData ( FrameData const & )

delete

FrameData() [5/5]

cs237::Window::FrameData::FrameData ( FrameData && )

delete

~FrameData()

virtual cs237::Window::FrameData::~FrameData ( )

virtual

Destructor.

Member Function Documentation

present()

vk::Result cs237::Window::FrameData::present ( )

inline

present this frame

Returns

the return status of presenting the image

resetFence()

void cs237::Window::FrameData::resetFence ( )

inline

reset this frame's inFlight fence

submitDrawingCommands()

void cs237::Window::FrameData::submitDrawingCommands

(

)

submit drawing commands for this frame using the main command buffer

waitForFence()

void cs237::Window::FrameData::waitForFence ( )

inline

wait for this frame's ‘inFlight’ fence

Member Data Documentation

cmdBuf

vk::CommandBuffer cs237::Window::FrameData::cmdBuf

the main command buffer for drawing to this frame

finished

vk::Semaphore cs237::Window::FrameData::finished

semaphore for signaling when render pass is finished

imageAvail

vk::Semaphore cs237::Window::FrameData::imageAvail

semaphore for signaling when the image object is available

index

uint32_t cs237::Window::FrameData::index

the swap-chain image index for this frame This field is set by the window's _acquireNextImage method.

inFlight

vk::Fence cs237::Window::FrameData::inFlight

fence for synchronizing on the termination of the rendering operation

win

Window* cs237::Window::FrameData::win

the owning window

---

The documentation for this struct was generated from the following file:

• /Users/jhr/Classes/23700/f2024/cs237-upstream/cs237-library/include/cs237/window.hpp
